| MOQ: | 1 Set |
| Price: | Negotiable |
| Standard Packaging: | Standard Seaworthy Package |
| Delivery Period: | 6-12month |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 80sets per year |

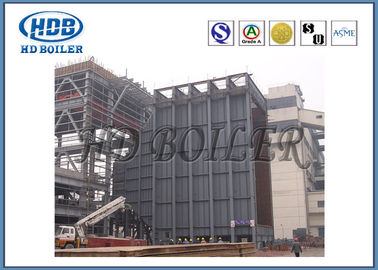

HRSG Heat Recovery Steam Generator , Gas Combustion Turbine Waste Heat Boiler
Product description
Cogeneration production process is coverted waste heat to electrical energy technology. Cogeneration not only energy,as wellas environmentally. Important cogeneration equipment room is HRSG. It uses gas, waste and other working fluid in the heat as a heat source or flammable substance, producing steam for power generation. As the working fluid temperature is not high, so the boiler bulky , consumed more than metal.Mainly used for high-temperature waste heat power generation flue gas heat, chemical reaction heat, waste gas, waste heat, less than 200 degrees and so on. Currently cogeneration applications has also been extended to the iron and steel, cement, glass,nonferrous metals, chemicals and other industries.
Technical Parameter
| Cement production line capacity t/d | 2500 | 3500 | 5000 | |
| Boiler inlet flow (Nm3/h) | Kiln(front) | 96800 | 142000 | 192000 |
| Kiln(tail) | 173000 | 241000 | 369000 | |
| Boiler inlet gas temperature℃ | Kiln(front) | 380 | 420 | 395 |
| Kiln(tail) | 365 | 360 | 355 | |
| Rated evaporation t/h | Kiln(front) | 2/9.6 | 3/17 | 3.2/21.3 |
| Kiln(tail) | 4.2/16.2 | 5.3/23 | 10.5/32 | |
| Rated steam pressure Mpa | Kiln(front) | 0.2/2.4 | 0.2/2.4 | 0.2/2.4 |
| Kiln(tail) | 0.2/2.4 | 0.2/2.4 | 0.2/2.4 | |
| Rated steam temperature℃ | Kiln(front) | 160/Saturation | 160/Saturation | 160/Saturation |
| Kiln(tail) | 160/250 | 160/250 | 160/250 | |
| Boiler structure | Kiln(front) | Vertical | Vertical | Vertical |
| Kiln(tail) | Vertical | Vertical | Vertical | |
Advantages
1. The heating surface of this type employs suspension structure which is good for absorbing boiler expansion and makes it safe in operation.
2. The three cast-off mixed burning and blown gas waste heat boiler uses special sealing devices to reduce boiler air leakage and improve boiler efficiency.
3. The heating surfaces employ reasonable flue gas velocity design to prevent soot accumulation.
4. Straight-arrangement adopted keeps the heating surface clean and improve the heat exchange efficiency.
5. This equipment organizes flue gas dynamic field to the flow of flue gas steady and uniform.
6. The convection tube-bank employs assembled structure with fast installation and low cost.
Flow Chart
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 400,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
|
|
