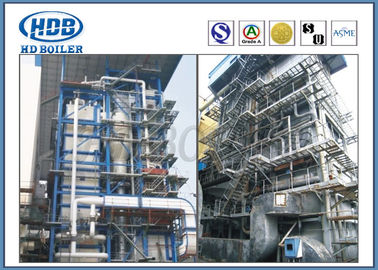

Coal Fired CFB Boiler / Utility Boiler High Thermal Efficiency ASME standard
Product Details
| Condition: | New | Structure: | Fluidized Bed |
|---|---|---|---|
| Fuel: | Coal / Biomass | Water Circulation: | Natural Circulation |
| Pressure: | High Pressure | Range Of Applications: | Industrial/Power Station |
| Specification: | Customized | Manufacturing Level: | A |
| Burning Style: | Fluidized Bed Furnace | Place Style: | Vertical |
| After-Sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| Highlight |
utility boiler,coal fired boiler |
||
Product Description
High Thermal Efficiency Coal Fired CFB Boiler and Utility Boiler with ASME standard
Product Description
HD boiler design and manufacture of a circulating fluidized bed boiler using clean combustion technology,the new boiler with high combustion efficiency and low pollution of typical characteristics of cleaning from the experience of other circulating fluidized bed boiler designed on the basis of optimizing.The coal adaptability ,can be applied to bituminous coal,lignite coal,lean coal,mixed coal and other different kinds of fuel,the combustion efficiency up to 99%.
The boiler is a natural cycle,M-type arrangement,the frame supporting hanging structure,using the cycle with a cyclone combustion system,for the membrane wall furnace,superheater from high and low two layout,the middle set spray superheater,the tail of Sec economizer and a secondary air preheater.Boiler according to interior decoration design,operation level elevation of 7 meters,all of the metal framework of the boiler structure for 7 degree earthquake intensity.
Performance characteristics
1. High efficiency.
2. Environmental.
3. Wide adaptability of coal.
4. high quality.
5. Can be comprehensive utilization.
Parameter
| Model | Capacity (t/h) | Pressure(MPa) | Steam temperature (ºC) |
Feed water temperature |
Desulfurization efficiency |
| HD-35/3.82-M | 35 | 3.82 | 450 | 150 | min 82 |
| HD-35/5.3-M | 35 | 5.3 | 450 | 150 | min 82 |
| HD-75/3.82-M | 75 | 3.82 | 450 | 150 | min 82 |
| HD-75/5.3-M | 75 | 5.3 | 485 | 150 | min 82 |
| HD-75/9.8-M1 | 75 | 9.8 | 540 | 215 | min 82 |
| HD-130/3.82-M | 130 | 3.82 | 450 | 172 | min 82 |
| HD-130/5.3-M | 130 | 5.3 | 485 | 172 | min 82 |
| HD-130/9.8-M | 130 | 9.8 | 540 | 215 | min 82 |
Fuel:soft/lean/bituminou coal, anthracite,lignite,biomass and etc.
Certifications
Competitive Advantage
Quality control and management to the whole produce process, including ingot smelting, hot-rolling, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
