| MOQ: | 1Set |
| Price: | Negotiable |
| Standard Packaging: | Seaworthy Packing |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T, Western Union, D/P, MoneyGram |
| Supply Capacity: | 500 Sets / Per Year |

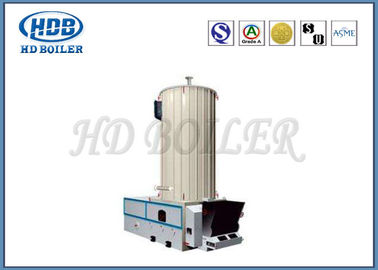

Enengy saving YYL(W) Coal Fired Vertical Organic Heat Carrier Boiler for industrial
Production
Flame and high temperature smoke produced by complete burning of fuel (light diesel oil,heavy oil,residual oil,natural gas,liquefied petroleum gas,city gas etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.
Features
1, Energy-efficient
2, Safe and reliable
3, Environmental protection
Parameter
|
Model YYL(W) |
350 Y(Q) |
600 Y(Q) |
900 Y(Q) |
1200 Y(Q) |
1500 Y(Q) |
1800 Y(Q) |
2300 Y(Q) |
2900 Y(Q) |
3500 Y(Q) |
||
| Rated power(kw) | 350 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | 2900 | 3500 | ||
| Heat supply×104(kCal/h) | 30 | 50 | 75 | 100 | 160 | 150 | 200 | 250 | 300 | ||
| Thermal efficiency(%) | ≥88 | ≥88 | ≥88 | ≥88 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Design pressure(MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| Maximum working temperature(℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
| Medium circulation rate(m3/h) | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| The furnace medium capacity(m3) | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | ||
| Competent diameter(DN) | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | ||
| Capacity(kw) | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | ||
| Applicable fuel | Oil,Gas | ||||||||||
| Fuel consumption Kg/h(oil) | 34 | 56 | 84 | 111 | 141 | 163 | 217 | 273 | 326 | ||
|
Dimensions (￠·H)m |
Vertical oil furnace | 1.3×2.5 | 2×3.5 | 2.1×3.5 | 2.2×3.5 | 2.2×4 | 2.2×4.4 | 2.7×5.1 | 2.8×6.5 | 3.2×6.7 | |
| Horizontal oil furnace | 1.2×2.4 | 1.7×3 | 1.82×3.5 | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.52×5.3 | 2.8×6.3 | 2.92×6 | ||
|
Circulation pump |
Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | |
| Flow(m3/h) | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| Lift(m) | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | ||
| Power(kw) | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | ||
Production Workshop
Certifications
Company Introduction
Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
|
|
