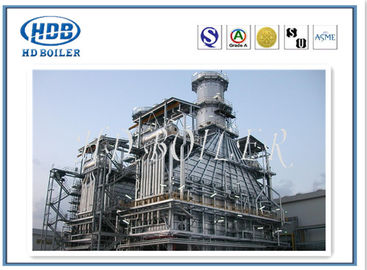

Eco Friendly Seamless Hrsg Heat Recovery Steam Generator Good Working Efficient
Product Details
| Type: | Natural Circulation,SEAMLESS | Structure: | Water Tube,HRSG,Fire Tube,Waste Heat Recovery Boiler |
|---|---|---|---|
| Style: | Horizontal | Condition: | New |
| Material: | ALLOY,Q345R Steel Plate,Steel | Packing: | Seaworthy Packing Of HRSG Heat Recovery Steam Generator. |
| Highlight |
waste heat recovery boiler,industrial boilers and heat recovery steam generators |
||
Product Description
Eco-friendly Seamless HRSG Heat Recovery Steam Generator with High Efficient
|
How about the products? Heat Recovery Steam Generator can be divided into fuel oil waste heat boilers, gas waste heat boilers, coal waste heat boilers and foreign media waste heat boilers.
The combustion of fuel oil, gas and coal produces high-temperature flue gas to release heat. The high-temperature flue gas enters the furnace chamber first, then enters the waste heat recovery device in the front smoke box, then enters the pyrotechnical pipe, and finally enters the waste heat recovery device in the flue pipe of the rear smoke box. The high-temperature flue gas turns into low-temperature flue gas and is discharged into the atmosphere through the chimney.
|
|
What are the functions of HRSG? Kiln (AQC) HRSG Features 1, Modular assembly structure, reliable sealing expansion 2, Adopt wear fin tubes, boiler pressure parts life assurance 3, Unique flash technology, the boiler outlet temperature is reduced to below 90ºC
Kiln (SP) HRSG Features 1, Heating surface tubes and headers with privildged connection structure, reducing mechanical shock and vibration 2, By mechanical vibration cleaning mode, continous cleaning mode little impact on system operation 3, Set sealed scraper gray machine, greatly reducing dust tail.
|
|
What are the features of HRSG? 1.Municipal solid waste incinerator(MSWI) 2.Straw burning boiler 3.Biomass Boilers 4.Waste heat recovery unit gas turbine 5.Low temperature HRSG boiler for dry cement kiln |
|
Why do you choose HRSG? 1100 employees, 400,000 ㎡ with fixed assets amounting to USD 110,000,000, 34 years experience, ISO9001, SO3834, EN12952 certificated, 150km expressway to Shanghai,60km state road to Suzhou or Wuxi, this is how we keep superior quality and competitive offers for global valued customers.
Our main products cover Utility Boiler, HRSG Boiler, coal-fired , oil(gas) -fired, coal-water-slurry-fired and garbage-fired steam/hot water boilers, organic heat carrier boilers, etc., and Boiler spare parts (Economizer, Finned tube, Header, Steam drum, Superheater, Water wall panel, Air preheater, Cyclone separator, etc., which are widely used in power generation, heat supply, chemical engineering, textile, food, paper, road building, plastic, rubber and wood working industries.
|
------------------------------------------------Some Parameters-------------------------------------------
| Cement production line capacity t/d | 2500 | 3500 | 5000 | |
| Boiler inlet flow (Nm3/h) | Kiln(front) | 96800 | 142000 | 192000 |
| Kiln(tail) | 173000 | 241000 | 369000 | |
| Boiler inlet gas temperature℃ | Kiln(front) | 380 | 420 | 395 |
| Kiln(tail) | 365 | 360 | 355 | |
| Rated evaporation t/h | Kiln(front) | 2/9.6 | 3/17 | 3.2/21.3 |
| Kiln(tail) | 4.2/16.2 | 5.3/23 | 10.5/32 | |
| Rated steam pressure Mpa | Kiln(front) | 0.2/2.4 | 0.2/2.4 | 0.2/2.4 |
| Kiln(tail) | 0.2/2.4 | 0.2/2.4 | 0.2/2.4 | |
-----------------------------------------------Some Pictures------------------------------------------------
