Industrial Steam Circulating Fluidized Bed Combustion Boiler High Pressure
Product Details
| Condition: | New | Structure: | Fire Tube |
|---|---|---|---|
| Fuel: | Coal-Fired | Water Circulation: | Natural Circulation |
| Pressure: | High Pressure | Range Of Applications: | Industrial/Power Station |
| Specification: | Customized | Place Style: | Vertical |
| Burning StylBurning Style: | Fluidized Bed Furnace | Function: | Steam Boilers |
| Highlight |
utility boiler,coal fired boiler |
||
Product Description
High combustion efficiency Saving Energy CFB Boiler high pressure With ASME Standard
Product Description

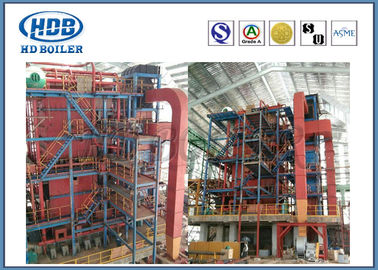

HD Brand circulating fluidized bed boiler is energy saving which is mainly installed at power plants to generate electricity.HD Brand Circulating fluidized bed boiler could adopt various coal types and has high combustion efficiency, which is especially suitable for low quality, low calorific value coal.HD Brand CFB boiler adopts stationary equipment design theory and CFB boiler technical parameter.
Structure Features
HD Brand boilers are efficient, energy saving and environmental friendly, which can help power plants actualize low pollutant emission based on their advanced technology and reliable
- Suitable for various kinds of coal.(Anthracite, lean coal, bituminous coal, lignite, biomass, etc)
- Clean combustion and environment friendly.
- Use lime stone mixed into the fuel for desulfuration, rate up to 84%.
- NOx emission capacity can be controlled to 150ppm or less.
- Ash with low carbon content can be used for cement or construction materials.
Parameter
| Model | Capacity (t/h) | Pressure(MPa) | Steam temperature (ºC) | Feed water temperature (ºC) |
Desulfurization efficiency |
| HD-35/3.82-M | 35 | 3.82 | 450 | 150 | min 82 |
| HD-35/5.3-M | 35 | 5.3 | 450 | 150 | min 82 |
| HD-75/3.82-M | 75 | 3.82 | 450 | 150 | min 82 |
| HD-75/5.3-M | 75 | 5.3 | 485 | 150 | min 82 |
| HD-75/9.8-M1 | 75 | 9.8 | 540 | 215 | min 82 |
| HD-130/3.82-M | 130 | 3.82 | 450 | 172 | min 82 |
| HD-130/5.3-M | 130 | 5.3 | 485 | 172 | min 82 |
| HD-130/9.8-M | 130 | 9.8 | 540 | 215 | min 82 |
Fuel:soft/lean/bituminou coal, anthracite,lignite,biomass and etc.
