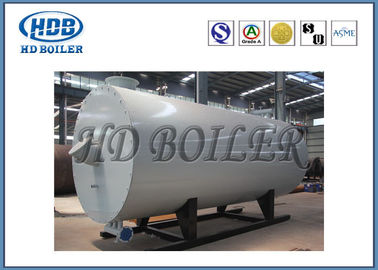

Horizontal Industrial Thermal Oil Boiler , Oil Fired Steam Boiler Low Pressure
Product Details
| Pressure: | Low Pressure | Burning Style: | Internal Firing Boiler |
|---|---|---|---|
| Place Style: | Horizontal | Usage: | Industrial |
| Media: | Organic Heat Transfer Material | Manufacturing Level: | A |
| Water Circulation: | Natural Circulation | Rated Power: | 350Kw - 16300Kw |
| Highlight |
thermal fluid boiler,hot oil boiler system |
||
Product Description
Horizontal type oil gas organic heat carrier boiler Hign efficiency easily install
Scope of product
Heat output:(30 - 1500) × 104 kCal/h
Design pressure: .1.1 MPa
Structural features
• YYW horizontal series organic heat carrier furnace the inside, outside(inside and outside)close-packed circular tube constitutes the inner coil radiation heating surface,the outer surface of , the outer coil and the inner coil convection heating surface.
• The exothermic combustion chamber for burning fuel including coil composed, most of the heat is absorbed by the radiation heating surface,high temperature flue gas into the convection heating surface and the heat exchanger.
• Retrofitting boilers tail with the tail heating surface,reducing the exhaust gas temperature of the boiler,the low-temperature flue gas from the boiler flue gas outlet directly discharged to the chimney and into the atmosphere.
Product parameters
|
Model YYL(W) |
350 Y(Q) |
600 Y(Q) |
900 Y(Q) |
1200 Y(Q) |
1500 Y(Q) |
1800 Y(Q) |
2300 Y(Q) |
2900 Y(Q) |
3500 Y(Q) |
||
| Rated power(kw) | 350 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | 2900 | 3500 | ||
| Heat supply×104(kCal/h) | 30 | 50 | 75 | 100 | 160 | 150 | 200 | 250 | 300 | ||
| Thermal efficiency(%) | ≥88 | ≥88 | ≥88 | ≥88 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Design pressure(MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| Maximum working temperature(℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
| Medium circulation rate(m3/h) | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| The furnace medium capacity(m3) | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | ||
| Competent diameter(DN) | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | ||
| Capacity(kw) | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | ||
| Applicable fuel | Oil,Gas | ||||||||||
| Fuel consumption Kg/h(oil) | 34 | 56 | 84 | 111 | 141 | 163 | 217 | 273 | 326 | ||
|
Dimensions (￠·H)m |
Horizontal oil furnace | 1.2×2.4 | 1.7×3 | 1.82×3.5 | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.52×5.3 | 2.8×6.3 | 2.92×6 | |
|
Circulation pump |
Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | |
| Flow(m3/h) | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
| Lift(m) | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | ||
| Power(kw) | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | ||
|
Model YYL(W) |
4700 Y(Q) |
5900 Y(Q) |
7000 Y(Q) |
8200 Y(Q) |
9400 Y(Q) |
10500 Y(Q) |
12000 Y(Q) |
14000 Y(Q) |
16300 Y(Q) |
||
| Rated power(kw) | 4700 | 5900 | 7000 | 8200 | 9400 | 10500 | 12000 | 14000 | 16300 | ||
| Heat supply×104(kCal/h) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1400 | ||
| Thermal efficiency(%) | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
| Design pressure(MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| Maximum working temperature(℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
| Medium circulation rate(m3/h) | 260 | 300 | 340 | 400 | 520 | 600 | 600 | 680 | 800 | ||
| The furnace medium capacity(m3) | 8.4 | 8.8 | 10.5 | 11.2 | 11.5 | 13 | 15 | 18 | 23 | ||
| Competent diameter(DN) | 200 | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | ||
| Capacity(kw) | 98.5 | 121.5 | 148.5 | 155 | 195 | 235 | 235 | 295 | 341 | ||
| Applicable fuel | Oil,Gas | ||||||||||
| Fuel consumption Kg/h(oil) | 435 | 545 | 660 | 760 | 875 | 980 | 1140 | 1360 | 1600 | ||
|
Dimensions (￠·H)m |
Horizontal oil furnace |
3.23× 6.7 |
3.26× 7.45 |
3.26× 7.9 |
3.62× 9 |
3.6× 9.48 |
3.65× 10.4 |
3.65× 10.6 |
3.98× 11.5 |
4.06× 12.5 |
|
|
Circulation pump |
Model WRY | 125-100-257 |
125- 100-260 |
150-125-270 | 125-100-250 | 125-100-257 | 125-100-260 | 150-100-260 | 150-125-270A | 150-125-280 | |
| Flow(m3/h) | 260 | 300 | 340 | 200×2 | 260×2 | 300×2 | 300×2 | 340×2 | 400×2 | ||
| Lift(m) | 70 | 70 | 76 | 60 | 70 | 70 | 70 | 76 | 78 | ||
| Power(kw) | 75 | 90 | 110 | 55×2 | 75×2 | 90×2 | 90×2 | 110×2 | 132×2 | ||
Performance advantages
1. Energy efficient
2. Safe and reliable
3. Easy to install
4. Fuel applicable
5. Application industry
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
