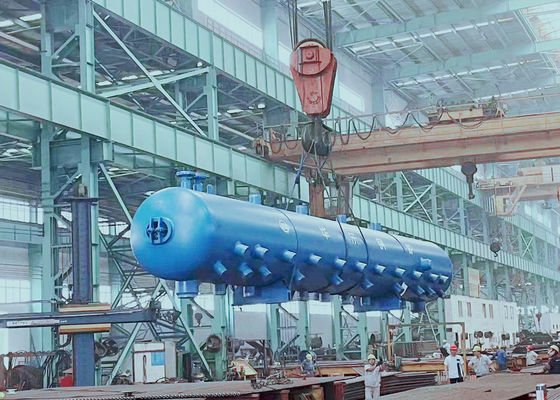

SA516-70 Sugar Mill Pressure Boiler Drum For Storing Hot Water

SA516-70 Sugar Mill Pressure Boiler Drum For Storing Hot Water

  • SA516-70 Sugar Mill Pressure Boiler Drum For Storing Hot Water
  • SA516-70 Sugar Mill Pressure Boiler Drum For Storing Hot Water
  • SA516-70 Sugar Mill Pressure Boiler Drum For Storing Hot Water
  • SA516-70 Sugar Mill Pressure Boiler Drum For Storing Hot Water
SA516-70 Sugar Mill Pressure Boiler Drum For Storing Hot Water
Product Details:
Place of Origin: China
Brand Name: HDB
Certification: ISO9001 , ASME, EN
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Sea worthy Packing for Export
Delivery Time: 30~50 days
Contact Now
Detailed Product Description
Product Name: Steam Drum Application: Boiler System And Industrial System
Material: SA516-70 Certification: ISO9001, ASME, EN
High Light:

SA516-70 pressure boiler drum

,

Sugar Mill pressure boiler drum

,

SA516-70 steam boiler drum

Boiler Parts Steam Drum Made of SA516-70 for Sugar Mill in ASME Standard





Definition

The boiler steam drum is the most important pressure vessel in industrial boilers for storing hot water and steam. In an industrial boiler pipe system, not all hot water can be fully evaporated into steam, but rather, a mixture of steam and hot water. Because saturated hot water needs more heat for conversion into steam, a boiler steam drum is a required piece of equipment. The steam drum separates hot water and steam, where the mixture still flows back for reheating through a down comer.



Classification



Pressure Low Middle High Superhigh
Inner diameter(mm)

800-1200

1400-1600

1600-1800

1600-1800
Thickness(mm) 16-25 32-46 60-100 80-100
Material Carbon steel Carbon steel & Alloy steel Carbon steel & Alloy steel Alloy steel




SA516-70 Sugar Mill Pressure Boiler Drum For Storing Hot Water 0



Accessories



The main components in a boiler system are the boiler feedwater heaters, deaerator, boiler, feed pump, economizer, boiler, superheater, attemperator, steam system, condenser and the condensate pump. In addition there are sets of controls to monitor water and steam flow, fuel flow, airflow and chemical treatment additions.

SA516-70 Sugar Mill Pressure Boiler Drum For Storing Hot Water 1








Quality Control



1. Impact test and Strength calculation report with applied materials information.

2. 100%NDT(non-destructive inspection) report of steel plate, tube and electrode

3. X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler

4. Hydraulic test report: ensure the standard working pressure and safety
