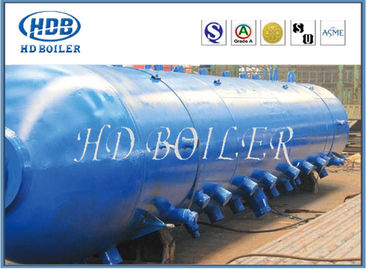

Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant

Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant

  • Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant
  • Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant
  • Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant
  • Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant
Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant
Product Details:
Place of Origin: Jiangsu, China
Brand Name: HDB
Certification: ISO9001 , SGS , TUV , ASME , EN
Model Number: Boiler Steam Drum
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy packing
Delivery Time: 30~50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Style: Horizontal Usage: Industry/Power Station
Output: Hot Water/Steam Pressure: High/Low Pressure
Type: Natural Circulation Structure: Fire/Water Tube
High Light:

steam drum in boiler

,

boiler mud drum



Naturally Circulated High Pressure Strict Producing Horizontal Boiler Steam Drum for Industry



Product Introduction

  • Steam drum is the most important pressure element in natural circulation boiler, which is mainly used in electric power production of medium pressure and high pressure subcritical boiler.
  • Steam drum refers to the pressure drop or rise caused by the air pressure through the water cycle. It can also be understood as the pressure change caused by the fusion of gas and water. The air and water molecules in the limit pressure will increase the pressure of the gas and lead to the pressure molecules generated after the high pressure reaches a certain value.Drum tank in industry is able to withstand the air pressure and water level pressure produced by the drum of an industrial equipment.





Features

  1. Chinese Famous Brand.
  2. Premium Quality, Competitive Price.
  3. Fast Delivery, Excellent After-sale Service.
  4. Certificate ISO9001, ASME, ISO14001, SGS.
  5. Compact structure, easy to install.
  6. The exhaust gas passes through the force convection tube bundle, improving the efficiency of the boiler.





Working Progress

  • The separated steam is drawn out from the top section of the drum and distributed for process.
  • Further heating of the saturated steam will make superheated steam normally used to drive a steam turbine.
  • Saturated steam is drawn off the top of the drum and re-enters the furnace in through a superheater.
  • The steam and water mixture enters the steam drum through riser tubes, drum internals consisting of demister separate the water droplets from the steam producing dry steam. The saturated water at the bottom of the steam drum flows down through the downcomer pipe.



 Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant 0

Attention

Boiler steam drum water level is one of the most important power plant parameters to both measure and control. Control of the proper water level in the boiler is critical for safe operation of the boiler. If the level is too low, boiler tubes will be damaged by overheating. If the level is too high, steam separators will not function properly, temperature control will be difficult, and the superheater tubes and turbine could be damaged by moisture or water treatment chemical carryover.





Certificate

Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant 1

Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant 2





Company Profile

  • 1100 employees, 400,000 ㎡ with fixed assets amounting to USD 110,000,000, 34 years experience, ISO9001, SO3834, EN12952 certificated, 150km expressway to Shanghai,60km state road to Suzhou or Wuxi, this is how we keep superior quality and competitive offers for global valued customers.
  • Our main products cover Utility Boiler, HRSG Boiler, coal-fired , oil(gas) -fired, coal-water-slurry-fired and garbage-fired steam/hot water boilers, organic heat carrier boilers, etc., and Boiler spare parts (Economizer, Finned tube, Header, Steam drum, Superheater, Water wall panel, Air preheater, Cyclone separator, etc., which are widely used in power generation, heat supply, chemical engineering, textile, food, paper, road building, plastic, rubber and wood working industries.

Naturally Circulated Strict Producing Boiler Drum In Thermal Power Plant 3
