Two Manifolds Sugar Mill Headers And Manifolds 15GrMoG And SA106 Material

Two Manifolds Sugar Mill Headers And Manifolds 15GrMoG And SA106 Material

MOQ: 1 Set/Sets 10tons
Price: Negotiable
Standard Packaging: Iron Frame Package
Delivery Period: 50 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 800 Tons / Year
Detail Information
Place of Origin
CHINA
Brand Name
HD BOILER
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
Alloy steel & Carbon steel manifold
Material:
Alloy And Carbon Steel
Usage:
Sugar Mill
Surface Treatment:
Antirust Paint
Specification:
16186*427*24 / 13504*427*24
Condition:
New
Port:
Shanghai
High Light:

SA106 Sugar Mill Headers

,

SA106 Sugar Mill Headers Manifolds

,

15GrMoG Sugar Mill Two Manifolds

Product Description





Two Manifolds Sugar Mill Headers And Manifolds 15GrMoG And SA106 Material



Description


1.Headers form an important part of all types of boilers.

2.Steam from the generating tubes is collected in headers which are therefore always under pressure.

3.This pressure may vary from 300 psi to 2000 psi. Since headers are always under pressure, the utmost care is taken by us while fabricating them.

4.Depending on the generating capacity of the boiler the header sizes fabricated by us vary from 100 mm to 600 mm NB.

5.The stubs of various sizes are very carefully welded to the main body of the header to provide the desired openings from the headers



Quality Control


1. Impact test and Strength calculation report with applied materials information.

2. 100%NDT(non-destructive inspection) report of steel plate, tube and electrode.

3. X-ray, γ-ray and liquid penetrant test inspection report to ensure the quality of the entire boiler.

4. Hydraulic test report: ensure the standard working pressure and safety.



Classification


Material Carbon steel,Alloy steel,Stainless steel.
Length According to costumes requirements.
Temperature Range 300℃~1500℃
Diameter(OD) 76mm~914mm


Two Manifolds Sugar Mill Headers And Manifolds 15GrMoG And SA106 Material 0



Product process



1.In manufacturing, the key of end cover hinder is welding. Since by manual arc welding, the weld joint is single-side welding without quality guarantee at the ends.

2.Due to large welding workload, frequent return for repair and long working period, it became the throat process of the whole hinder production.

3.When making hinders of the style, we adopt advanced production technique, complete large equipment and mature technology, especially automatic submerged arc welding between hinders and end covers.

4.Such welding methods have high manufacturing efficiency, good quality, beautiful welding shape, safety, reliability, etc.



Design and Manufacturing capacity


1.Two automatic coiler production lines

2.Hot bending to minimum bending radius 0.6D

3.Membrane wall tube bending , with horizontal and vertical panel bending machines

4.Panel fabrication for up to for 1000MW power plant boilers

5.Fabrication of CFB Boiler Cyclone Separators

6.Fabrication of Header to Chinese standards(GB), US standards (ASME), or EU standard (EN)

7.Broad range of heat treatment equipment including 10 furnaces, offering normalizing and tempering

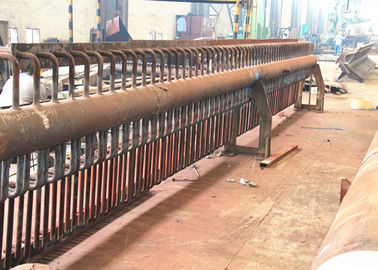

 Two Manifolds Sugar Mill Headers And Manifolds 15GrMoG And SA106 Material 1
