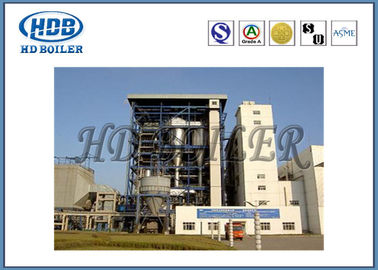

Circulating Fluidized Bed Steam / Hot Water Boiler High Pressure For Power Plant
Product Details
| Condition: | New | Fuel: | Coal |
|---|---|---|---|
| Structure: | Natural Circulation | Pressure: | High Pressure |
| Range Of Applications: | Power Station | Manufacturing Level: | A |
| Burning Style: | Fluidized Bed Furnace | Port: | Shanghai |
| Highlight |
utility boiler,coal fired boiler |
||
Product Description
Circulating Fluidized Bed Steam / Hot Water Boiler High Pressure For Power Plant
Product Description
HD Boiler design and manufacture of a circulating fluidized bed boiler using clean combustion technology,the new boiler with high combustion efficieny and low pollution of the typical characteristics of learning from the experience of other circulating fluidized bed boiler designed on the basis of optimizing.
Structure
The coal adaptability,can be applied to bituminous coal,lignite coal,lean coal,mixed coal and other different kinds of fuel,the combustion efficiency up to 99%,especially combustible fuel with higher sulfur content by adding limestone to the furnace can significantly reduce sulfur dioxide emissions,due to low temperature combustion,Nox emissions are significantly reduced,thereby reducing the corrosion of equioment and flue gas pollution of the environment,the utilization rate of slag,cement ,etc.can do the admixture.The boiler is a natural cycle,M-type arrangement,the frame supporting hanging structure,using the cycle with a cyclone combustion system,for the membrane wall furnace,superheater from high and low two layout,the middle set spray superheater,the tail of Sec economizer and asecondary air preheater.Boiler according to interior decoration design,operation level elevation of 7 meters,all of the metal framework of the boiler structure for 7 degree earthquake intensity.
Circulating Fluidized Bed Boiler Specification
| Model | Fuel(0-13mm) |
Installation Size (L×W×H)m3 |
| SF-35/3.82-M |
Mixed coal(bituminous coal,lean coal,anthracite,lignite,etc) |
17×8.5×27 |
| SF-35/5.29-M | 17×8.5×27 | |
| DHF35-2.5/400-W | 17×8.5×27 | |
| SF-75/3.82-M | 23×12.5×33 | |
| SF-75/5.29-M | 23×12.5×33 | |
| DHF75-2.5/400-W | 23×12.5×33 | |
| SF-45/3.82-M | 18×10×29 | |
| SHF20-2.5-W | 15×8×15 | |
| SF-130/3.82-M | 23×15×42 | |
| SF-130/5.29-M | 23×15×42 | |
| SF-130/9.8-M | 23×15×42 |
HD Brand boilers are efficient, energy saving and environmental friendly, which can help power plants actualize low pollutant emission based on their advanced technology and reliable .
- Suitable for various kinds of coal.(Anthracite, lean coal, bituminous coal, lignite, biomass, etc)
- Clean combustion and environment friendly.
- Use lime stone mixed into the fuel for desulfuration, rate up to 84%.
- NOx emission capacity can be controlled to 150ppm or less.
- Ash with low carbon content can be used for cement or construction materials.
Certificate
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 400,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
