Industrial Steam Hot Water Boiler System , Horizontal Gas Fired Steam Boiler

Industrial Steam Hot Water Boiler System , Horizontal Gas Fired Steam Boiler

MOQ: 1Set
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 Sets / Per Year
Detail Information
Place of Origin
Zhangjiagang,Jiangsu,China
Brand Name
HD Boiler
Certification
ISO9001,ASME,Grade A,SGS,EN
Model Number
SZL
Condition:
New
Structure:
Water Tube
Fuel Available:
Coal-Fired
Operation:
Automatic
Placement:
Horizontal Boiler
Usage:
Industrial
Installation:
Assembled Boiler
Water Circulation:
Natural Circulation
Rated Working Pressure(Mpa):
1.25-2.5
Rated Steam Temperature:
193-226
Highlight:

industrial hot water boiler

,

coal fired hot water boiler

Product Description

 High thermal efficiency SZL Coal Fired Steam Hot Water Boiler wiht long service life

Production

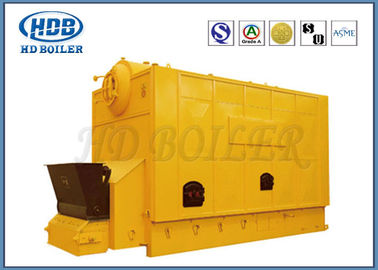

HD DZL series steam and hot-water boiler is the single-cylinder, water-tube assembly, chain grate boiler. Boiler drum is arranged along the center of the boiler longitudinally.

The front drum and both sides of the furnace water-wall tubes form radiant heating surface, the rear drum and the tube nest between the header form convection heating surface.

Coal economizer is installed at the rear of boiler.

After some heat of the combustion-generated high temperature fume is absorbed by the hearth, the fume flows to the convection heating surface through burn out chamber and exhausts outside through the chimney via coal economizer, dust collector and draught fan.

Features and Advantages


1. Compact structure, small installation space, single-floor boiler room, cost-effective infrastructure.
2. Great assembly level, short installation period and inexpensive installation.
3. Sufficient and reasonable heating surface, quick temperature/pressure-rise of boiler, satisfactory productivity and high heating efficiency.
4. Introduce the air with air distribution chambers of grate. All air distribution
chambers can adjust the air flow independently and grate can be regulated step-less speed.
5. Wide range of applicable coals and full combustion.
6. Electric control cabinet is equipped with complete automatic control and monitor
instruments featuring high automation, safety, reliability and simple operation.


Industrial Steam Hot Water Boiler System , Horizontal Gas Fired Steam Boiler 0

Parameter


Model SZL6-1.25-AII
SZL6-1.6-AII
SZL6-2.5-AII
SZL8-1.25-AII
SZL8-1.6-AII
SZL8-2.5-AII
SZL10-1.25-AII
SZL10-1.6-AII
SZL10-2.5-AII
SZL15-1.25-AII
SZL15-1.6-AII
SZL15-2.5-AII
SZL20-1.25-AII
SZL20-1.6-AII
SZL20-2.5-AII
SZL25-1.25-AII
SZL25-1.6-AII
SZL25-2.5-AII
SZL30-1.25-AII
SZL30-1.6-AII
SZL30-2.5-AII
Rated heating efficiency(MW) 6 8 10 15 20 25 30
Rated working pressure(MPa) 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5
Rated steam temperature 193/204/226 193/204/226 193/204/226 193/204/226 193/204/226 193/204/226 193/204/226
Rated outlet temperature 60 60 60 60 104 104 104
Heating area Boiler(m2) 156 197.4 235.6 412 508 510 588.6
Coal economizer(m2) 87.2 157 174.4 413/413/236 357 496 450
Air preheater(m2)       -/-/181 199 212 210
Effective area of grate(m2) 7.8 10.1 11.8 17.3 21 24.3 25.8
Water volume(m3) 7.3 9.6 12.4 15.3 21.6 27 27.6
Design efficiency(%) 80 80 80 80 80 80 80
Applicable fuel Soft Class II
Maximum size of shipping part(m) 6.1×3.1×3.5 6.8×3.4×3.5 7.6×3.4×3.5 9.6×3.4×3.54 11×3.41×3.54 8.3×3.0×3.6 8.5×3.6×3.64
Maximum weight of shipping part(t) 25 29 31 42 50 22/28 23/29
Overall size of installation(m) 9.5×5.5×6.2 9.5×5.5×6.2 9.8×5.7×6.2 10.9×5.7×6.7 12×5.8×6.8 13.8×6.0×10.6 18×6×10.5
Draught fan GY6-1 30kw GY10-1 45kw GY10-15 55kw Y5-47 12D 75kw GY5-47 12.4D 90kw GY20-15 110kw GY35-15 132kw
Blower fan T4-72 5A 11kw GG10-1 15kw GG10-1 15kw G4-73 9D 30kw G4-73 9D 30kw GG20-15 55kw G40-73 10D 55kw
Speed governor GL-10P 0.75kw GL-16P 1.1kw GL-16P 1.1kw GL-20P/II 1.5kw GL-20P/II 1.5kw GL-30P 2.2kw GL-40P 3kw
