Power Station Boiler Manifold Headers , Steam Boiler Header Piping ASME Standrd
Product Details
| Condition: | New | Structure: | Fire/Water Tube |
|---|---|---|---|
| Fuel: | Coal/Gas/Coal-fired/Water Heat | Type: | Boiler Part |
| Pressure: | Low/High Pressure | Range Of Applications: | Industrial/Power Station |
| Specification: | Customized | Manufacturing Level: | A |
| Surface Treatment: | Painted | HS Code: | 3215960855 |
| Highlight |
oem collection boiler header,ASME Steam Boiler Header Piping,Painted Steam Boiler Header Piping |
||
Product Description
Power Station Boiler Header Heating Power Chemical Oil Chemical Industry boiler unit SGS
Product Description

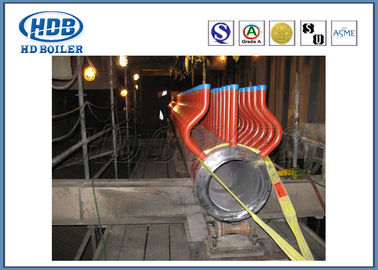

The boiler headers have water wall header, superheater header, economizer header and so on, it acts as collection, mixture, re-distributing working medium. From the structure, it can be classified as the end cover type (end closure) and necking down type.
The critical point to manufacture the end cover is the welding process. We adopt the advanced manufacture process, the complete large size device and mature technology. Especially the welding of the end cover with the header, we adopt the auto submerged welding, this welding method is featured with high manufacturing efficiency, good quality, artistic appearance and safe and reliable operation.
Technical parameters of customer design boiler pressure parts header for CFB boiler
| Diameter(OD) | ￠76mm~￠914mm |
| Length(Max) | 23000mm |
| Temperature(℃) | 300~1500 |
Material
1. Carbon steel:20G,SA-106B,SA-106C,etc.
2. Low-alloy thermal resistant steel:15CrMoG,12Cr1MoVG,SA-335P12,SA335-P22,etc.
3. Middle-alloy thermal resistant steel:SA-335P91,etc.
4. Special material(ultra-supercritical):SA-335P122,SA-335P92,etc.
Features
1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safet
Workshop
Certifications
Competitive Advantage
Quality control and management to the whole produce process, including ingot smelting, hot-rolling, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
Product Highlights
Power Station Boiler Header Heating Power Chemical Oil Chemical Industry boiler unit SGS Product Description The boiler headers have water wall header, superheater header, economizer header and so on, it acts as collection, mixture, re-distributing working medium. From the structure, it can be ...
High Pressure Power Boiler Heating Surface Membrane Wall Argon Arc Welding For Biomass Boiler
High Pressure Power Boiler Heating Surface Membrane Wall Argon Arc Welding For Biomass Boiler Product Introduction Water wall panels with pins usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.It is the main type of evaporating heating surface of all kinds of modern boilers and the basic component of boiler water circulation loop.Because of both cooling
High Frequency Welding H Fin Tube Economizer For Power Plant Boiler ASME
High Frequency Welding H Fin Tube Economizer For Power Plant Boiler ASME Product Description The boiler economizer is a device used to recover waste heat in industrial boilers, usually located at the tail of the flue of the boiler, which increases the feed water temperature and reduces fuel consumption by absorbing the heat of the flue gas, so as to achieve the effect of energy saving and emission reduction. But at the same time, as an environmental protection equipment, the
Carbon Steel SA192 Superheater Coil Argon Arc Welding 100% PT
Product Description: A boiler superheater is an essential component in a boiler system, responsible for increasing the temperature of steam produced by the boiler. One of the key products in this category is the Superheater Coil, designed to enhance the efficiency and performance of boiler systems. This particular superheater is suitable for various fuels, including coal, oil, and biomass, making it versatile and adaptable to different energy sources. The Superheater Coil
Boiler Industrial SA210A1 Steel Boiler Economizer Heat Exchange Part ASME Certification
Boiler Industrial SA210A1 Steel Boiler Economizer Heat Exchange Part ASME Certification Introduction The H-shaped finned tube is also known as the H-shaped fin tube, also known as the butterfly fin tube. It is to weld symmetrically two pieces of steel with an arc in the middle to form fins (ribs or butterflies), the frontal shape of which resembles the letter "H", so it is called the H-shaped finned tube. The two fins of the H-shaped fin tube are rectangular and approximately
