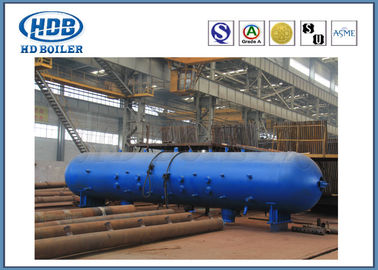

Anti Wind Pressure Induction Steam Drum For Power Station CFB Boiler

Anti Wind Pressure Induction Steam Drum For Power Station CFB Boiler

MOQ: 1 set
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 50~100 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 400 Tons per month
Detail Information
Place of Origin
China
Brand Name
HD Boiler
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
Steam drum
Condition:
New
Structure:
Fire/Water Tube
Fuel:
Coal/Gas/Coal-fired/Water Heat
Type:
Natural Circulation/Once Through
Pressure:
Low/High Pressure
Range Of Applications:
Industrial
Specification:
Customized
Manufacturing Level:
A
Surface Treatment:
Painted
Output:
Hot Water/Steam
Highlight:

boiler drum level control

,

steam drum in boiler

Product Description



Anti wind pressure induction boiler Steam drum for power station CFB boiler with ASTM certification



Product Description


A steam drum is a standard feature of a water-tube boiler. It is a reservoir of water/steam at the top end of the water tubes. The drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture. The difference in densities between hot and cold water helps in the accumulation of the "hotter"-water/and saturated-steam into the steam-drum.



Steam-water separation details


Primary steam-water separation removes nearly all the steam from the water so that very little steam is recirculated from the drum bottom towards the heated tubes through the outlet connection (downcomer).

At secondary separation, steam is passed through a secondary stage of separators or scrubber elements (usually closely spaced corrugated parallel plates) for final water droplet removal. Steam is then exhausted through various ports.



Anti Wind Pressure Induction Steam Drum For Power Station CFB Boiler 0



Production Workshop


Anti Wind Pressure Induction Steam Drum For Power Station CFB Boiler 1

Anti Wind Pressure Induction Steam Drum For Power Station CFB Boiler 2



HD Boiler offers a best in class facility,including




  • Fabrication area of 200,000 square meters
  • 150 Engineers
  • 600 Coded welders
  • 60 Licensed Inspectors (including NDT level-lll instructors)
  • Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
  • ISO 90001:2008 Quality System
  • ASME Certificate of Utility Boiler
  • ASME‘S’ , ‘U’ and NB stamp authorization

Anti Wind Pressure Induction Steam Drum For Power Station CFB Boiler 3

Anti Wind Pressure Induction Steam Drum For Power Station CFB Boiler 4
