| Place of Origin: | China |
| Brand Name: | HD Boiler |
| Certification: | ISO9001 , SGS , TUV , ASME , EN |
| Model Number: | Steam drum |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy Packing |
| Delivery Time: | 50~100 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 400 Tons per month |
| Condition: | New | Structure: | Fire/Water Tube |
|---|---|---|---|
| Fuel: | Coal/Gas/Coal-fired/Water Heat | Type: | Natural Circulation/Once Through |
| Pressure: | Low/High Pressure | Range Of Applications: | Industrial |
| Specification: | Customized | Surface Treatment: | Painted |
| Output: | Hot Water/Steam | Weight: | 10~1000 Tons |
| High Light: | boiler drum level control,steam drum in boiler |
||

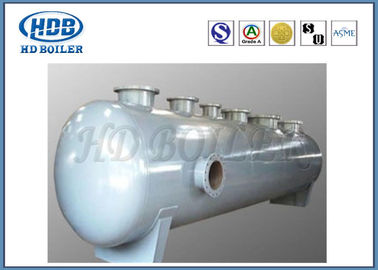

Non Pollution Gas Steam Drum For Power Station Boiler With ISO Certification
Product Description
It is the main part of the boiler ,in which steam and water separates. Inside the boiler, saturated steam is separated from water and then directed into super heating tubes for further temperature increase.
Water separated from steam will combine with the incoming boiler feed water and then re-enter the down comers to repeat the cycle. Thus the boiler drum acts as a steam separator.
Accessories
The main components in a boiler system are the boiler feedwater heaters, deaerator, boiler, feed pump, economizer, boiler, superheater, attemperator, steam system, condenser and the condensate pump. In addition there are sets of controls to monitor water and steam flow, fuel flow, airflow and chemical treatment additions.
Parameter
| Pressure | Low | Middle | High | Superhigh |
| Inner diameter(mm) |
￠ 800-1200 |
￠ 1400-1600 |
￠ 1600-1800 |
￠ 1600-1800 |
| Thickness(mm) | 16-25 | 32-46 | 60-100 | 80-100 |
| Material | Carbon steel | Carbon steel & Alloy steel | Carbon steel & Alloy steel |
Features
1. Chinese Famous Brand.
2. Premium Quality, Competitive Price.
3. Fast Delivery, Excellent After-sale Service.
4. Certificate ISO9001, ASME, ISO14001, SGS.
5. Compact structure, easy to install.
6.The exhaust gas passes through the force convection tube bundle, improving the efficiency of the boiler.
Testing
Company Information
Fabrication area of 200,000 square meters
150 Engineers
600 Coded welders
60 Licensed Inspectors (including NDT level-lll instructors)
Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
ISO 90001:2008 Quality System
ASME Certificate of Utility Boiler
ASME‘S’ , ‘U’ and NB stamp authorization
