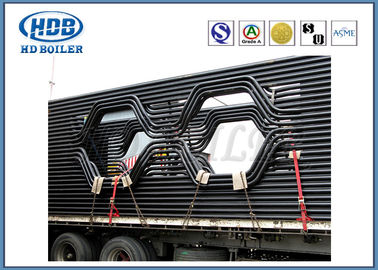

Power Station CFB Boiler Membrane Water Wall For Cooling TUV Certification
Product Details
| Condition: | New | Structure: | Fire/Water Tube |
|---|---|---|---|
| Fuel: | Coal/Gas/Coal-fired/Water Heat | Type: | Energy Saving |
| Pressure: | Low/High Pressure | Range Of Applications: | Industrial/Power Station |
| Specification: | Customized | Manufacturing Level: | A |
| Surface Treatment: | Painted | Trademark: | HDB |
| HS Code: | 3215960855 | ||
| Highlight |
boiler water wall panels,membrane water wall |
||
Product Description
power station energy saving CFB boiler induction boiler Membrane water panel With TUV Certification
Product Description
Pressure loss caused by wall tubes (or risers, evaporator tubes) of a natural circulation boiler should be at low level because of the natural circulation principle. Thus, vertically installed riser tubes in natural circulation boilers have a larger diameter than riser tubes in forced circulation boilers. All natural circulation boilers must have an upwards-rising arrangement of wall tubes because of the circulation principle. There are variations on how sharp the rise is: In conservative vertical furnace boilers the wall tubes are placed in a straight vertical direction . In corner tube (Eckrohr) boilers the wall tubes are arranged as slightly rising or horizontal wall-tube banks.
Advantages of Membrane Water Panel
1). To guarantee the leakproofness of furnace wall and reduce the air leak of combustion chamber.
2). To achieve the full water cooling of combustion chamber, and the boiler accessories membrane water wall is benefit to prevent coking under the condition of supplemental firing.
3). The thermal storage capacity is small, the warming of combustion chamber is fast and the cooling is also fast, which could shorten the cooling time of boiler’s start and furnace shut down.
4). It is good to adopt top supported water cooled wall and it could reduce the load of boiler framework, which is benefit to overhang.
5) Compared with the bare tubes, the membrane water wall improves the heat absorption capacity of tubes.
6) The factory direct boiler membrane water wall could improve the Preliminary combination degree of boiler parts and reduce the installation workload.
Parameter
| Name | Membrane water panel |
| Material | Carbon steel,Alloy,Stainless steel |
| Tube size | Φ38 - 76 mm, or as required |
| Standard | ISO , ASME |
| Model | Studded |
| Application | Istallable around the boiler combustion chamber |
Features
1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safet
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
