Environmental Friendly Boiler Water Wall Panels Alloy Seamless ASTM Certification

Environmental Friendly Boiler Water Wall Panels Alloy Seamless ASTM Certification

MOQ: 500 tons
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, D/P, MoneyGram
Supply Capacity: 500 Tons/Month
Detail Information
Place of Origin
China
Brand Name
HD Boiler
Certification
ISO9001,ASME,Grade A,SGS,EN
Model Number
Membrane Water Wall
Condition:
New
Structure:
Fire/Water Tube
Range Of Applications:
Industrial/Power Station
NDE:
100% PT,100 RT,100% UT
Material:
Carbon Steel / Stainless Steel Etc
Packing:
Iron Frame Package
Highlight:

boiler water wall panels

,

boiler water wall tubes

Product Description





Environmental Friendly Boiler Water Wall Tubes Alloy Seamless ASTM Certification





Advantages of membrane water wall


(1) Ensure the tightness of furnace wall and reduce air leakage in combustion chamber.

(2) Realize full water cooling in combustion chamber, which is conducive to preventing coking under the circumstance of enhanced combustion.

(3) Small heat storage capacity, fast heating of combustion chamber, fast cooling, can shorten the boiler start and stop cooling time.

(4) Suitable for the use of tube coating furnace wall, thus greatly reducing the load of the boiler frame, easy to hang.

(5) Compared with the light tube, the heat absorption capacity of the tube is improved.

(6) Improve the degree of pre-combination of boiler parts, convenient and reduce the installation work.





Product Introduction

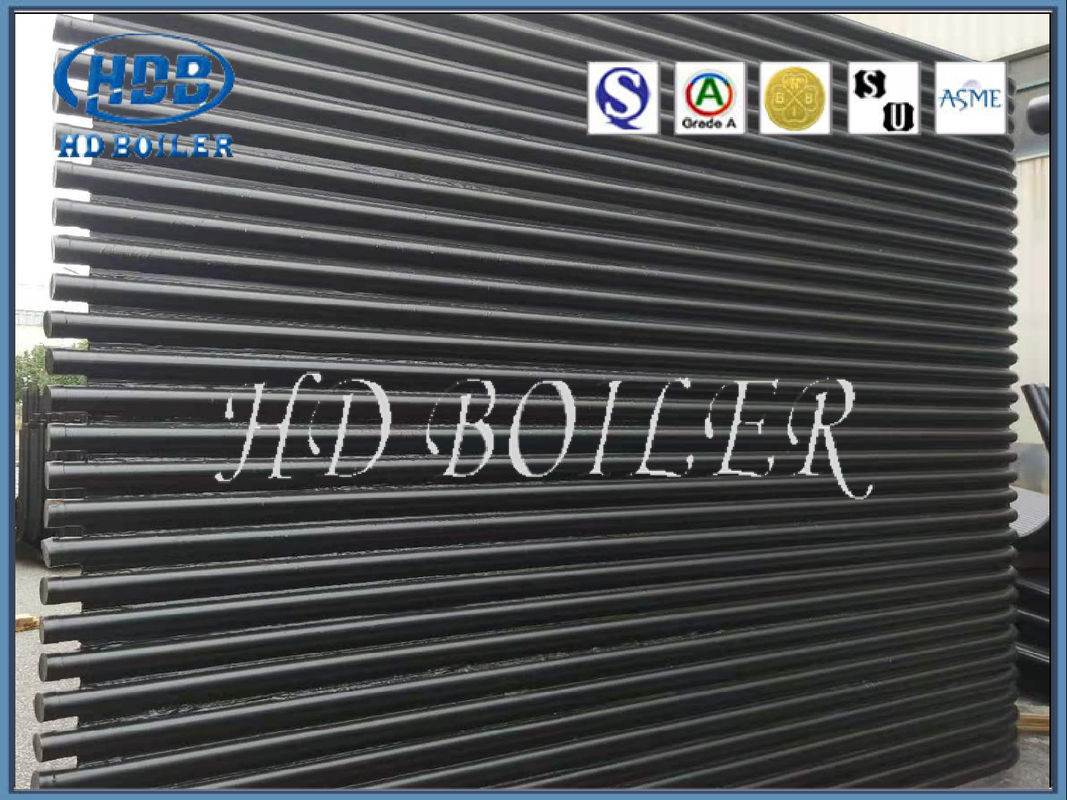

Membrane water cooling wall refers to the water cooling wall composed of air-tight pipe screen welded by flat steel and pipe.The membrane water cooling wall can guarantee the good tightness of the furnace chamber, significantly reduce the air leakage coefficient of the furnace chamber for the negative pressure boiler, and improve the combustion condition in the furnace.It can increase the effective radiation heating area and save steel consumption.



Environmental Friendly Boiler 	Water Wall Panels Alloy Seamless ASTM Certification 0





Description


Water wall panels are used in Waste Heat recovery boilers. We manufacture Water wall panels. These are fabricated out of carbon steel tubes to customers' drawings and specifications. Special care is taken for ovality and thinning at the bent portion, during fabrication.

We are manufacturing and supplying a comprehensive range of Waterwall Panels. The tubes offered by us are known to withstand a great internal pressure as a continual strip of fin material is wound spirally on the tube. These tubes are known to provide heat uniformly that result in an increased heat output.

The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.





Construction Details


The combination characteristics of membrane water cooling wall are as follows:
1. Check and adjust the width, length, flatness and diagonal of the pipe row when the segmented pipe row is hoisted onto the combination frame.If the width of the tube row is greater than or less than the specified size, the fin can be cut to an appropriate length, adjusted to the specified size and then re-welded.When the diagonal difference of pipe row exceeds lOmm, fins between some pipes with larger size can be cut to reduce the distance between pipes to eliminate the diagonal difference, and then the fins can be welded.When the unevenness of the pipe row exceeds the allowable range, gantry frame can be used to correct the top pressure of the jack.
2. The butt joint of pipe row is different from that of a single pipe.The welding joint of a single pipe shrinks by about 1-2mm after welding, which has no effect on other pipes.But the pipe row is not the same, two sections of pipe row butt welding, if from one side to the other side of the sequence of welding, welding to the end of the pipe caused by the deformation is very large.Therefore, before the butt welding, the butt clearance of this welding joint should be comprehensively measured, and according to the butt clearance is too small, moderate, too large classification, if the butt clearance is too large or too small, must take the method of cutting the pipe, replaced with a moderate short pipe.At this time, due to the shrinkage of welding, the pipe with a larger gap will become solderable. In order to reduce the shrinkage deformation of pipe welding, the method of symmetry and cross welding should be adopted.
3. The lower part of the front and rear water cooling wall has furnace bottom (cold ash bucket), and the upper part of the rear water cooling wall has flame Angle, so the size of the component is larger and the shape is more special, so it is difficult to combine.
4. The single pass ball of the rear water wall pipe is different from other heating surface pipes.Because the rear water wall in the upper header box has a flameproof Angle, the number of flameproof Angle bending pipe is the same as that of the rear water wall, in order to increase the rigidity of the flameproof Angle, there is also a considerable number of spacing straight pipe (most furnace type).At the intersection of flame Angle and straight pipe, equidiameter special-shaped cast steel tee (three-branch pipe) is installed.In the straight tube and the junction between the top allied tank is equipped with orifice Φ 5 mm or Φ restrictor of 10 mm.In this way, most of the working medium bent pipe is conducive to the cooling of the flame Angle, and a small part of the working medium bent pipe ensures that the straight pipe and the curved pipe have the corresponding amount of expansion, so as to reduce the internal stress, so the difficulty of passing through the ball increases.





Advantages of Membrane Water Wall


1.To guarantee the leakproofness of furnace wall and reduce the air leak of combustion chamber.

2. To achieve the full water cooling of combustion chamber, and the boiler accessories membrane water wall is benefit to prevent coking under the condition of supplemental firing.

3. The thermal storage capacity is small, the warming of combustion chamber is fast and the cooling is also fast, which could shorten the cooling time of boiler’s start and furnace shut down.

4. It is good to adopt top supported water cooled wall and it could reduce the load of boiler framework, which is benefit to overhang.

5. Compared with the bare tubes, the membrane water wall improves the heat absorption capacity of tubes.

6. The factory direct boiler membrane water wall could improve the Preliminary combination degree of boiler parts and reduce the installation workload.



Environmental Friendly Boiler 	Water Wall Panels Alloy Seamless ASTM Certification 1



Additional


1 Water wall panels are used in Waste Heat recovery boilers.
2 We manufacture Water wall panels,these are fabricated out of carbon steel tubes to customers' drawings and specifications.
3 Special care is taken for ovality and thinning at the bent portion,during fabrication.
4 We are manufacturing and supplying a comprehensive range of Waterwall Panels.
5 The tubes offered by us are known to withstand a great internal pressure as a continual strip of fin material is wound spirally on the tube.
6 These tubes are known to provide heat uniformly that result in an increased heat output.
7 The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.






Application


1 Energy saving enviromental protection china supplier membrane water wall for CFB boiler are membrane walls that are made of tubes welded together with or without a strip of metal in between.
2 These walls form the enclosure of the coal combustion chamber.
3 Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.





Note


1 Control of weld penetration to satisfy mechanical and heat transfer requirements Control of the deformation to acceptable tolerances.
2 Panels routinely require straightening in the workshop after welding and heat treatment, the question to be answered is can the shop then meet the required dimensional tolerances for successful site installation?
3 Can existing shop handling procedures be used as-is without adding excessive controls that will add cost and schedule.
4 The importance of preheating and its maintenance through the welding process could cause a number of handling and shop processing issues that will substantially increase cost.
