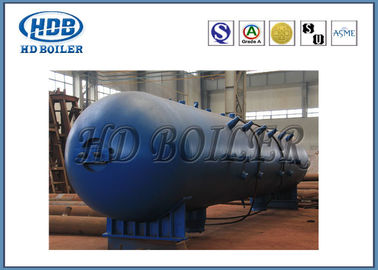

SA16Gr70 Once Through Single Mud Drum In Boiler Level Control Stainless Steel

SA16Gr70 Once Through Single Mud Drum In Boiler Level Control Stainless Steel

MOQ: 1 set
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 50~100 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 400 Tons per month
Detail Information
Place of Origin
China
Brand Name
HD Boiler
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
Steam drum
Condition:
New
Product Name:
Steam Drum In Boiler
Packaging Details:
Iron Frame Package
Structure:
Fire / Water Tube
Pressure:
Low / Middle / High Pressure
Type:
Natural Circulation / Once Through
Output:
Hot Water / Steam
Weight:
10~1000 Tons
Highlight:

boiler drum level control

,

boiler mud drum

Product Description

Single mud drum SA16Gr70 Security assurance Corrosion resistance power generation once through



Description



A steam drum is a pressure chamber of a steam boiler located at the upper extremity of steam boiler circulatory system. It is a reservoir of water/steam at the top end of the water tubes. The steam drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture. Steam is separated from the water and then discharged at a position above the water level maintained there.



Accessories



The main components in a boiler system are the boiler feedwater heaters, deaerator, boiler, feed pump, economizer, boiler, superheater, attemperator, steam system, condenser and the condensate pump. In addition there are sets of controls to monitor water and steam flow, fuel flow, airflow and chemical treatment additions.



Attention



Boiler steam drum water level is one of the most important power plant parameters to both measure and control. Control of the proper water level in the boiler is critical for safe operation of the boiler. If the level is too low, boiler tubes will be damaged by overheating. If the level is too high, steam separators will not function properly, temperature control will be difficult, and the superheater tubes and turbine could be damaged by moisture or water treatment chemical carryover.



Working Progress

The separated steam is drawn out from the top section of the drum and distributed for process. Further heating of the saturated steam will make superheated steam normally used to drive a steam turbine. Saturated steam is drawn off the top of the drum and re-enters the furnace in through a superheater. The steam and water mixture enters the steam drum through riser tubes, drum internals consisting of demister separate the water droplets from the steam producing dry steam. The saturated water at the bottom of the steam drum flows down through the downcomer pipe.

SA16Gr70 Once Through Single Mud Drum In Boiler Level Control Stainless Steel 0



ASME Requirements



SA16Gr70 Once Through Single Mud Drum In Boiler Level Control Stainless Steel 1

ASME 'S' & 'U' STAMP

SA16Gr70 Once Through Single Mud Drum In Boiler Level Control Stainless Steel 2

NB(National Board)



Company Introduction



Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8.ASME 'S','U' and NB stamp authorization



Design and Manufacturing capacity



1. Two automatic coiler production lines

2. Hot bending to minimum bending radius 0.6D

3. Membrane wall tube bending , with horizontal and vertical panel bending machines

4. Panel fabrication for up to for 1000MW power plant boilers

5. Fabrication of CFB Boiler Cyclone Separators

6. Fabrication of Header to Chinese standards(GB), US standards (ASME), or EU standard (EN)

7. Broad range of heat treatment equipment including 10 furnaces, offering normalizing and tempering



SA16Gr70 Once Through Single Mud Drum In Boiler Level Control Stainless Steel 3
