Automatic Steam Hot Water Boiler Fire Tube With Gas Fired / Oil Fired
Product Details
| Model: | WNS | Fuel: | Gas - Fired , Oil - Fired |
|---|---|---|---|
| Structure: | Fire Tube | Water Circulation: | Natural Circulation |
| Trademark: | HD BOILER | HS Code: | 3215960855 |
| Function: | Steam Boiler | Placement: | Horizontal Boiler |
| Manufacturing Level: | A | Port: | Shanghai |
| Highlight |
industrial steam boiler,coal fired hot water boiler |
||
Product Description

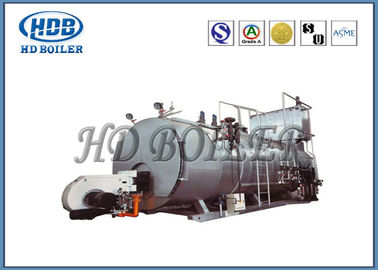

Hot Water Steam Boiler with Industrial Gas-Fired Oil-Fired Fire Tube boiler WNS Style
Description
WNS automatic oil(gas)-fired steam/hot water boiler is the horizontal, three-return, fire-return, fire-tube boiler, mainly consisting of housing, tank, diversion smoke chamber and fire tubes. Boiler can use light oil, heavy oil, natural gas, liquefied gas and urban coal gas.
Product parameters
| Steam boiler Model | WNS 2-1.0-Y,Q | WNS 2-1.25-Y,Q | WNS 2-1.0-Y,Q | WNS 6-1.25-Y,Q | WNS 8-1.25-Y,Q | WNS 10-1.25-Y,Q | WNS 20-1.25-Y,Q | |
| Rated evaporation(t/h) | 2 | 4 | 6 | 8 | 10 | 15 | 20 | |
| Rated steam temperature(MPa) | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| Rated steam temperature(℃) | 184 | 193 | 193 | 193 | 193 | 193 | 193 | |
| Water-supply temperature(℃) | 20 | 20 | 104 | 104 | 104 | 104 | 104 | |
| Boiler volume(m3) | 7.2 | 8.2 | 14.5 | 16.2 | 19.8 | 26.1 | 30.5 | |
| Design efficiency(%) | 92 | 92 | 92 | 92 | 92 | 93 | 93 | |
| Applicable fuel | Light oil,heavy oil,natural gas,liquefied gas and urban coal gas | |||||||
| External size | Length(mm) | 5084 | 6022 | 7151 | 7600 | 8360 | 9050 | 9650 |
| Width(mm) | 2450 | 2700 | 2800 | 3000 | 3000 | 3200 | 3430 | |
| Height(mm) | 2380 | 2684 | 2882 | 3200 | 3200 | 3560 | 3570 | |
| Boiler weight(t) | 8 | 12.6 | 17.2 | 18.6 | 23.5 | 34.2 | 40.1 | |
| Diameter of main steam opening(mm) | 65 | 100 | 125 | 150 | 150 | 200 | 200 | |
| Diameter of safety valve(mm) | 40×2 | 50×2 | 65×2 | 65×2 | 80×2 | 100×2 | 100×2 | |
| Chimney diameter(mm) | 350 | 450 | 600 | 700 | 750 | 900 | 1000 | |
| Steam boiler Model | WNS 2-1.0-Y,Q | WNS 2-1.25-Y,Q | WNS 2-1.0-Y,Q | WNS 6-1.25-Y,Q | WNS 8-1.25-Y,Q | WNS 10-1.25-Y,Q | WNS 20-1.25-Y,Q | |
| Rated evaporation(t/h) | 2 | 4 | 6 | 8 | 10 | 15 | 20 | |
| Rated steam temperature(MPa) | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| Rated steam temperature(℃) | 184 | 193 | 193 | 193 | 193 | 193 | 193 | |
| Water-supply temperature(℃) | 20 | 20 | 104 | 104 | 104 | 104 | 104 | |
| Boiler volume(m3) | 7.2 | 8.2 | 14.5 | 16.2 | 19.8 | 26.1 | 30.5 | |
| Design efficiency(%) | 92 | 92 | 92 | 92 | 92 | 93 | 93 | |
| Applicable fuel | Light oil,heavy oil,natural gas,liquefied gas and urban coal gas | |||||||
| External size | Length(mm) | 5084 | 6022 | 7151 | 7600 | 8360 | 9050 | 9650 |
| Width(mm) | 2450 | 2700 | 2800 | 3000 | 3000 | 3200 | 3430 | |
| Height(mm) | 2380 | 2684 | 2882 | 3200 | 3200 | 3560 | 3570 | |
| Boiler weight(t) | 8 | 12.6 | 17.2 | 18.6 | 23.5 | 34.2 | 40.1 | |
| Diameter of main steam opening(mm) | 65 | 100 | 125 | 150 | 150 | 200 | 200 | |
| Diameter of safety valve(mm) | 40×2 | 50×2 | 65×2 | 65×2 | 80×2 | 100×2 | 100×2 | |
| Chimney diameter(mm) | 350 | 450 | 600 | 700 | 750 | 900 | 1000 | |
Advantages
1. Use the wet liner structure, furnace heating surface wave back, symmetrical layout, effectively reduce the thermal stress, prolongs the lifespan of the boiler.
2. Using the thread smoke tube to improve the heat transfer effect of flue pipe.
3. Boiler heating surface layout reasonable, high thermal efficiency, fast start.
4. The steam boiler combustion chamber adopts low position, so that the boiler water level safety range is larger, the boiler steam is larger, the steam quality is well guaranteed.
5. Using the international well-know brand burner and advanced automatic control system, the combustion is more stable, more convenient operation, operation more safety.
6. Boiler structure is compact, small footprint, fast installation.
