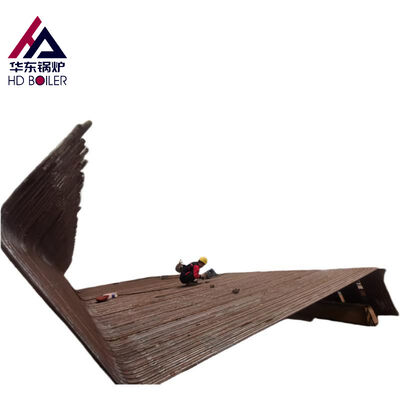

Submerged Arc Welding High Pressure Boiler Waterwall Panels with Customized Specifications

Products

Flue Gas Cooler

hdb@boilerfabrication.cn

86-15151590099

Contact Now

Submerged Arc Welding High Pressure Boiler Waterwall Panels with Customized Specifications

MOQ:	3
Price:	1800

Detail Information

Product Description

Detail Information

Surface Treatment:

Painted

Fuel Type:

Biomass, Coal, Gas

Material:

Alloy Steel, Carbon Steel, Stainless Steel

Structure Type:

Fire/Water Tube

Pressure Level:

High Pressure

Transport Package:

Iron Frame

Tube Size:

Φ38 - 76 Mm

Standard Compliance:

ISO, ASME

Thermal Storage:

Small Capacity

Heat Absorption:

Improved By Membrane

NDT Coverage:

100% Steel Materials

Welding Inspection:

X-ray, γ-ray, Penetrant

Hydraulic Test:

Pressure Safety Verified

Production Capacity:

500 Tons/Month

Tube Spacing:

Evenly Spaced

Highlight:

Submerged Arc Welding Water Wall Panel

High Pressure Boiler Waterwall

Customized Specification Membrane Water Wall

Product Description

Heating Element Submerged Arc Welding Boiler Waterwall Panels

A waterwall in a boiler is a furnace wall comprised of refractory materials and tubes in a water-tube boiler configuration. The evenly spaced tubes connect to headers that link back to the main generating bank of the boiler. These panels serve dual purposes: capturing heat that would otherwise escape to the atmosphere to help heat the boiler water, while simultaneously keeping the refractory materials relatively cool to prevent spalling.

Key Advantages

Ensures leakproof furnace wall construction and reduces combustion chamber air leakage
Provides complete water cooling of combustion chamber, preventing coking during supplemental firing
Features minimal thermal storage capacity for rapid heating and cooling cycles
Supports top-mounted installation to reduce boiler framework load and facilitate overhang
Enhances heat absorption capacity compared to bare tube configurations
Enables preliminary combination of boiler components to reduce installation workload

Product Specifications

Parameter	Specification
Product Name	Membrane Water Panel
Material Options	Carbon Steel, Alloy, Stainless Steel
Tube Size Range	Φ38 - 76 mm, Customizable
Manufacturing Standards	ISO, ASME
Application	Boiler Combustion Chamber Installation

Packaging & Shipping

We employ specialized packaging solutions tailored to your specific requirements:

Frame boxes for oversized cargo (overlength, overwidth, overheight, overweight)
Standard containers for regular-sized goods
Comprehensive reinforcement of all loaded goods

Manufacturer Profile

Zhangjiagang Hua Dong Boiler Co., Ltd., established in 1985, specializes in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers, and related heating surface components. We provide comprehensive services from design and manufacturing to installation and maintenance.

Quality Assurance

With 38 years of industry experience in research, development, and manufacturing, we maintain sufficient production capacity to meet diverse client needs.

Quality Control Measures

Impact testing and strength calculation reports with material information
100% non-destructive inspection of steel plates, tubes, and electrodes
Comprehensive welding seam inspection (X-ray, γ-ray, liquid penetrant testing)
Hydraulic testing to ensure standard working pressure and safety compliance

Our complete quality assurance and control system is certified according to International Quality Standards. We maintain strict compliance with national regulations, standards, and technical requirements, ensuring 100% process and product quality control throughout manufacturing.

Certifications & Global Reach

Frequently Asked Questions

Q1: How long is the warranty period?

We provide 18 months warranty for all spare parts (excluding fragile parts).

Q2: How can we guarantee quality?

Strict adherence to ISO quality and CE system requirements
Professional skilled labor with dedicated quality control at each procedure
Comprehensive product information tracking through efficient management systems

Q3: What products do you offer?

CFB Boilers, HRSG Boilers, Boiler Economizers, Boiler Fin Tubes, Boiler Air Preheaters, Boiler Superheaters, Boiler Membrane Walls, Boiler Manifold Headers, and other pressure spare parts.

Q4: What services do you provide?

Before Sales:

Product information, market research forecasting, product customization, product processing, consultation services.

After Sales:

Technical training according to customer requirements
Warranty replacement commitment
Maintenance spare parts supply
Regular customer follow-up and visits
Prompt response to complaints and consultations

Delivery Terms: FOB, CFR, CIF, EXW, FCA
Payment Currency: USD, CNY
Payment Methods: T/T, L/C, MoneyGram, Western Union, Cash
Languages: English, Chinese

Q5: Are you a factory or trading company, and where are you located?

We are a manufacturing facility located just 130km (2 hours by car) from Shanghai Airport. We provide pickup service from Shanghai for customer visits.
