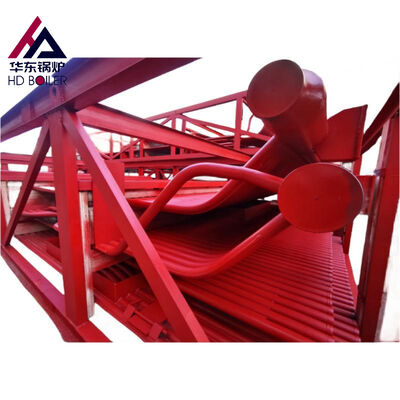

High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications
  • name
  • name
  • name
  • name
  • name
  • name

High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications

MOQ: 3
Price: 1800
Detail Information
Product Description
Detail Information
Model NO.:
03 Boiler Waterwall Panel
Surface Treatment:
Painted
Fuel Type:
Biomass, Coal, Gas
Material:
Alloy Steel, Carbon Steel, Stainless Steel
Supply Ability:
500 Tons Per Month
Structure:
Fire/Water Tube
Pressure:
High Pressure
Transport Package:
Iron Frame
Tube Size:
Φ38 - 76 Mm
Standard:
ISO, ASME
Type:
Heating Surface
Hydraulic Test:
Report Provided
NDT Report:
100% Inspection
Welding Inspection:
X-ray, γ-ray, Penetrant Test
Impact Test:
Report Provided
Highlight:

High Pressure Water Wall Panel

,

Customized Membrane Water Wall

,

Alloy Steel Boiler Water Wall

Product Description
Membrane Water Wall Panels for Industrial Boilers
High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 0 High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 1
A waterwall in a boiler is a furnace wall composed of refractory materials and tubes in water-tube boilers. The evenly spaced tubes connect to headers that link back to the main generating bank. These components serve dual purposes: capturing heat that would otherwise escape to the atmosphere to help heat boiler water, and keeping the refractory relatively cool to prevent spalling.
Key Advantages
  • Ensures furnace wall leakproofness and reduces combustion chamber air leakage
  • Provides complete water cooling of combustion chamber, preventing coking during supplemental firing
  • Features small thermal storage capacity for fast heating and cooling, reducing boiler start-up and shutdown times
  • Supports top-mounted installation to reduce boiler framework load and facilitate overhang
  • Enhances tube heat absorption capacity compared to bare tubes
  • Factory-direct manufacturing improves boiler parts integration and reduces installation workload
Product Specifications
Parameter Details
Product Name Membrane Water Panel
Material Carbon Steel, Alloy, Stainless Steel
Tube Size Φ38 - 76 mm, Customized
Standard ISO, ASME
Application Installation around boiler combustion chamber
Packaging & Shipping
High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 2
  • Special cargo (overlength, overwidth, overheight, overweight) shipped in frame boxes for easy handling
  • Regular goods transported in standard containers
  • Comprehensive reinforcement of all goods after loading
Company Profile
High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 3 Zhangjiagang Hua Dong Boiler Co., Ltd., founded in 1985, specializes in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers, and related heating surface components. We provide integrated services from design and manufacturing to installation and maintenance.
Our Advantages
High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 4 High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 5
•
38 years of industry experience in research, development, and manufacturing with substantial production capacity
High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 6
Quality Control
  • Impact testing and strength calculation reports with material information
  • 100% NDT (non-destructive inspection) of steel plate, tube, and electrode
  • X-ray, γ-ray, and liquid penetrant testing for welding seam quality assurance
  • Hydraulic testing to ensure standard working pressure and safety compliance
High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 7
Complete quality assurance and control system certified to International Quality Standards. We maintain compliance with national regulations, standards, and technical requirements, ensuring 100% process and product quality control through stringent inspection and testing.
Certifications
High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 8
Global Sales
High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 9 High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 10 High Pressure Customized Alloy Steel Water Wall Panel for Industrial Boiler Applications 11
Frequently Asked Questions
Q1: How long is the warranty period?
We provide 18 months warranty for all spare parts (excluding fragile parts).
Q2: How can we guarantee quality?
  • All machines comply with ISO quality and CE system requirements
  • Each procedure crafted by professional skilled labor with dedicated QC
  • Comprehensive product information available through efficient management system
Q3: What can you buy from us?
CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall, Boiler manifold headers and other pressure spare parts.
Q4: What kind of service do you provide?
Before sales: Product information, market research forecasting, product customization, product processing, consultation services.

After sales:
  • Technical training according to customer requirements
  • Replacement guarantee under warranty
  • Maintenance spare parts supply
  • Regular customer follow-up and visits
  • Prompt response to complaints and consultations
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash
Language Spoken: English, Chinese
Q5: Are you a factory or trading company, where are you located?
We are a factory located just 130km (2 hours by car) from Shanghai Airport. We offer pickup service at Shanghai for your visit.
