| Place of Origin: | China |
| Brand Name: | HD Boiler |
| Certification: | ISO9001,ASME,Grade A,SGS,EN |
| Model Number: | Membrane Water Wall |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy Packing |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P, MoneyGram |
| Supply Ability: | 500 Tons/Month |
| Condition: | New | Structure: | Fire/Water Tube |
|---|---|---|---|
| Fuel: | Coal/Gas/Coal-fired/Water Heat | Type: | Energy Saving |

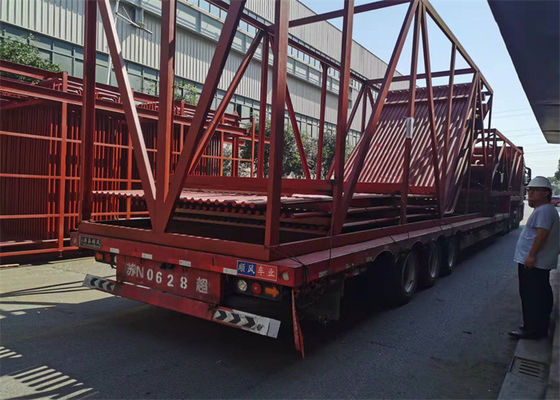

| Packing: | Iron Frame Package | Material: | Carbon Steel / Stainless Steel Etc |
| High Light: | Heat Preservation boiler membrane water panels,NDT boiler membrane water panels,ASME Hot Water boiler wall |
||
power station heat preservation gas hot water boiler spare parts water wall panels
Features of Water Wall Panel
1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safety.
Product details of Water Wall Panel
Water wall panels with pins usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.It is the main type of evaporating heating surface of all kinds of modern boilers and the basic component of boiler water circulation loop.Because of both cooling and protection of the furnace wall, so the name.
The water wall was originally designed not to be heated, but to cool the furnace from high temperature damage.Later, because of its good heat exchange function, it gradually replaced the steam drum as the main heating part of the boiler.
The evaporative heating surface, which is laid on the inner wall of boiler chamber and consists of many parallel pipes.The function of water wall is to absorb the radiant heat of high temperature flame or flue gas in the furnace chamber, generate steam or hot water in the pipe, and reduce the temperature of the furnace wall to protect the furnace wall.In a large capacity boiler, the flame temperature in the furnace is very high, the intensity of heat radiation is very large.Forty to fifty percent or more of the heat in the boiler is absorbed by the water wall.Except for a few small capacity boilers, modern water tube boilers take water cooling wall as the main heating surface of evaporation.
Parameter of Water Wall Panel
| Name | Membrane water panel |
| Material | Carbon steel,Alloy steel,etc. |
| Tube size | Φ38 - 76 mm, Customization |
| Standard | ISO , ASME |
| Model | Studded |
| Dimension | Customization |
| Manufacturing process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Polishing→Tube joint welding→Assembly →Welding →Inspection→Heat treatment→Hydraulic pressure test→Painting→ Packaging |
| Installation location | Around the boiler combustion chamber |
Adavantages of Water Wall Panel
1.ensure the sealing of furnace wall and reduce air leakage in combustion chamber.
2.realize full water cooling in the combustion chamber, which is conducive to preventing coking under the condition of intensified combustion.
3.low heat storage capacity, fast heating and cooling of the combustion chamber, which can shorten the cooling time of the boiler starting and stopping.
4.it is suitable to use tube-laying furnace wall, which greatly reduces the load of boiler frame and facilitates suspension.
5.compared with the light pipe, the heat absorption capacity of the pipe is improved.
6.improve the pre-assembly degree of boiler components, facilitate and reduce the installation workload.
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
