SGS 60mm Tube Gas Boiler Membrane Water Wall Panels Painted Surface
Product Details
| Material: | Carbon Steel,Alloy,Stainless Steel | Surface Treatment: | Painted |
|---|---|---|---|
| HS Code: | 3215960855 | Packaging: | Iron Frame Packing |
| Available: | Energy Saving | Fuel: | Coal / Gas / Coal-fired / Water Heat |
| Port: | Shanghai | ||
| Highlight |
SGS boiler water wall panels,60mm boiler water wall panels,60mm membrane water wall |
||
Product Description
Industry Gas Burner Pressure Parts Boiler Membrane Water Panel Carbon Steel
Product Description
Membrane water wall is widely used in modern enterprise. Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.
Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.
Our membrane water wall are manufactured using high grade raw material and contemporary production equipment at our advanced manufacturing unit. The offered range is available in various sizes, shapes and specifications, as per the requirements of our esteemed clients. Further, these are delivered to the clients within promised time frame.
| Product name | Membrane water wall |
| Material | Carbon steel,alloy steel |
| Type |
Bare tube type;membrane type |
| ColorCus | Customized |
| Advantage |
1.protect furnace wall 2.good air tightness 3.easy to install. |
Specification
| Name | Membrane water panel |
| Material | Carbon steel,Alloy,Stainless steel |
| Tube size | Φ38 - 76 mm, Customize |
| Standard | ISO , ASME |
| Model | Studded |
| Application | Istallable around the boiler combustion chamber |

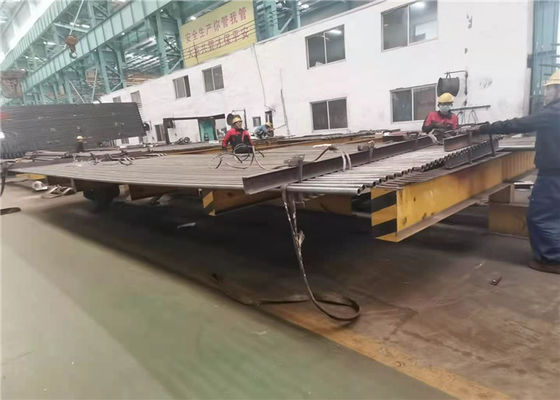

Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. We supply Panels with integrated manhole openings in the panels.
The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.
Quality Control
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
