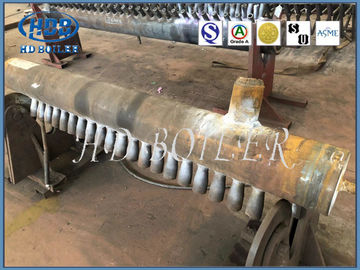

High Preasure Boiler Header Manifolds In Industrial Power Plant , ASME Standard boiler parts

High Preasure Boiler Header Manifolds In Industrial Power Plant , ASME Standard boiler parts

MOQ: 1Set
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, D/P, MoneyGram
Supply Capacity: 100 Tons/Month
Detail Information
Place of Origin
Zhangjiagang,Jiangsu,China
Brand Name
HD Boiler
Certification
ISO9001/TUV/ASME/EN
Model Number
Customization
Condition:
New
Structure:
Fire/Water Tube
Fuel:
Coal/Gas/Coal-fired/Water Heat
Type:
Boiler Part
Range Of Applications:
Industrial/Power Station
Specification:
Customized
Materials:
Carbon Steel / Stainless Steel/Alloy Steel
Surface Treatment:
Painted
Pressure:
High Pressure,Low Pressure
Color:
Customized Requirement
Highlight:

header in boiler

,

headers and manifolds

Product Description



High Preasure Boiler Spare Boiler Parts Manifold Headers,Industrial Power Plant,ASME Standard







Product Introduce


Manifold headers is boiler part which can improve heat exchange efficient by increase heat surface.The water in drum flow down to the headers through boiler barrel and allocate to tubes.

Water in tubes absorb heat and then collect into upper headers follow to drum.We usually named called these upper and lower headers as manifold header.

The main function of manifold headers is gather,mix and redistribution working medium to ensure uniform allocation and heating in boiler systeam.



HDB can design and manufacture headers include water-cooling headers  of boiler proper,economizer headers,superheater heaters and so on.



High Preasure Boiler Header Manifolds In Industrial Power Plant , ASME Standard boiler parts 0





Structure&Feature


Structure header body, end cover, tube joint, hand cole, thermometer socket
Feature advanced welding, high automation degree, safe and reliable operation





Functions


Manifold headers is boiler part for work medium mixing and uniform heating.

The furnace wall usually combined by water wall panels,but it can not make sure all working medium in tubes absorb same amount heat as the boiler is bulkey and complex in structure.So we usually install headers in boiler syesteam to allow working medium mix and redistrubute.Which can reduce thermal deviation and improve colling,heat exchange efficient of boiler.

Besides,the upper,middle,lower pipe are in different specifications,also the quantity and layout are different.The manifold headers can connect all these pipes to make sure working medium can flow in it smoothly.





Material


HDB can follow customers requirements to design and manufacture manifold headers in carbon steel,stainless steel,alloy steel,etc.





Quality control


1. Strength calculation report with applied materials information.
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler.
4. Hydraulic test report: ensure the standard working pressure and safety.



High Preasure Boiler Header Manifolds In Industrial Power Plant , ASME Standard boiler parts 1





Certifications




High Preasure Boiler Header Manifolds In Industrial Power Plant , ASME Standard boiler parts 2

High Preasure Boiler Header Manifolds In Industrial Power Plant , ASME Standard boiler parts 3





Company Introduction




Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
