Stainless Steel Boiler Spare Parts Boiler Manifold Headers For Power Industry
Product Details
| Structure: | Fire/Water Tube | Fuel: | Coal/Gas/Coal-fired/Water Heat |
|---|---|---|---|
| Material: | Carbon Steel/Stainless Steel | Pressure: | Low/High Pressure |
| Range Of Applications: | Industrial/Power Station | Specification: | Customized |
| Surface Treatment: | Painted | Packing: | Iron Frame Package |
| Highlight |
header in boiler,headers and manifolds |
||
Product Description

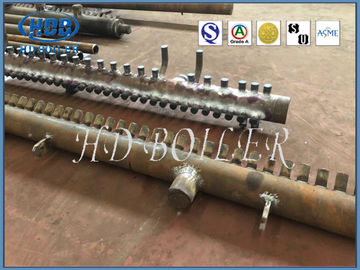

Stainless Steel Boiler Spare Parts Boiler Manifold Headers For Power Industry
The head is an important part of all types of boilers.Steam from the generating line is collected in the collector and is therefore always under pressure.This pressure ranges from 300psi to 2000psi.Since the header is always under pressure, we have to be very careful when making it.Depending on the power generation capacity of the boiler, we produce set-box sizes ranging from 100mm to 600mm NB.Studs of different sizes are welded very carefully on the body of the head to provide the desired opening of the head.
Technical parameters of customer design boiler pressure parts header for CFB boiler
| Structure | header body, end cover, tube joint, hand cole, thermometer socket |
| Characteristics | advanced welding, high automation degree, safe and reliable operation |
Material
The furnace head of natural gas industry can be made of alloy steel, carbon steel or other materials as required by users.Comply with ASTM, EN, DIN, GB standards.
The production equipment is 30~185MN hydraulic press, forging ratio is >3, and the technical conditions meet ASTM, EN, DIN, GB standards.
Hot rolled steel plate production
1.Hot rolled steel, hot rolled steel.The complete raw material of the formed steel ingot is heated through the rolling process of the steel ingot.
2.Width greater than 600 mm (greater than or equal to 600 mm), thickness is 0.35-200 mm.
Features
1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safet
Certification
