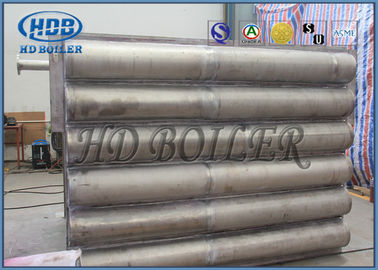

Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry

Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry

  • Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry
  • Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry
  • Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry
  • Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry
Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry
Product Details:
Place of Origin: China
Brand Name: HD Boiler
Certification: CE,ROHS,CCC,ISO9001,UL
Model Number: Flue Gas Cooler
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy packing
Delivery Time: 30~50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Product Name: Air Cooler Heat Exchanger Application: Drying Or Cooling Usage For Various Equipments,Heater Parts,Freezers,HVAC System,Air Conditioer
Tube Material: Carbon Steel,stainless Steel Fin Material: Aluminum,Copper,stainless Steel
Color: Silver Or Natural Color Packing: Seaworthy Packing
High Light:

flue gas heat exchanger

,

flue gas heat recovery


Stainless Steel Waste Heat Eco-friendly Flue Gas Cooler for Industry

Product Information

1. Before designing this kind of equipment, it is necessary to know the nature of the gases to be cooled and their dust content.
2. The purpose of all that is to design an equipment free of important fouling which would force to make cleaning works more frequently than wanted.
3. We must have in mind as well the availability to detach the dust from the gaseous stream containing it in all those areas where there is a bend or some enlarging in the pass section, which forces to include in the design some systems for dust collection and removal, to allow the correct heat exchange.
4. Working principle of a flue-gases cooler is the same as in the above-described equipment, but the aim in this case is to cool a primary fluid, not to get a thermal profit by heating a secondary fluid.
5. These equipment are usually installed as the previous step to a flue-gases cleaning, to avoid the gases from reaching the cleaning systems at too high temperatures. This means an alternative to the dilution with air, which would imply an over-sizing of the mentioned systems.

Efficiency



1. Flue gas condensation may cause the heat recovered to exceed the Lower Heating Value of the input fuel, and thus an efficiency greater than 100%.

2. Since historically most combustion processes have not condensed the fuel, usual efficiency calculations assume the combustion products are not condensed.

3. This assumption is implicit when basing calculations on the Lower Heating Value.
4. A more rigorous approach would be to base efficiency calculations on the Higher Heating Value, which typically results in efficiencies less than 100%.[citation needed]

5. Should the flue gases be cooled below 25 °C (77 °F), even efficiencies based on the Higher Heating Value may exceed 100%, since typical heating value definitions assume that all heat is released when combustion products are cooled to somewhere between 15.56 °C (60.01 °F) and 25 °C (77 °F).





Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry 0

Related Products

"Hua Dong" boilers include Utility Boiler, HRSG Boiler, coal-fired , oil(gas) -fired, coal-water-slurry-fired and garbage-fired steam/hot water boilers, organic heat carrier boilers, etc., and Boiler spare parts (Economizer, Finned tube, Header, Steam drum, Superheater, Water wall panel, Air preheater, Cyclone separator, etc., which are widely used in power generation, heat supply, chemical engineering, textile, food, paper, road building, plastic, rubber and wood working industries. "HD" boilers are honored as "Famous Production in Jiangsu Province", " Jiangsu High-Tech Product" and "Jiangsu Energy-Saving Product". "HD" brand is a "Famous Brand in Jiangsu Province". We are a qualified supplier for the top three boiler manufacturers in China(Harbin Boiler Co., Ltd., Dong Fang Boiler Group Co., Ltd., Shanghai Boiler Works Ltd.,). So far, Hua Dong Boilers have served 10000 customers, which sell well all over China and are exported to USA, Australia, Russia, Kazakhstan, India, Indonesia, South Africa, Brazil, and Southeast Asia.

Features

In traditional boiler, fuel after the boiler combustion, exhaust smoke temperature is relatively high, the flue gas water vapor is still in the gaseous state, will take a lot of heat. In all kinds of fossil fuels, hydrogen content in natural gas is highest, the quality percentage of hydrogen is about 20% to 25%, as a result, the smoke contains large amounts of water vapor, according to estimates, burning 1 square meters of natural gas to take away the heat of the steam produced paper of 4000 kj, which is about more than 10% of the gross calorific value.

Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry 1

Company Profile

  • 60 Licensed Inspectors(NDT Level-III instructors)
  • Class-A Licenses for Design and Manufacture Boiler
  • ISO 9001:2008 Quality System
  • ASME Certificate of Power Boilers
  • ASME 'S','U' and NB stamp authorization
  • Fabrication area of 200,000 square meters
  • 150 Engineers
  • 600 Coded welders

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry 2

Stainless Steel Superheater and Reheater Gas Cooler Heat Exchanger For Industry 3

Design and development

Collect all parameters for product design, make design acording to the Supervisory Regulations on Boiler Safety Technology, other laws, rules, regulations and professional standards, and 100% meet the product standards and customers' requirements.

Supervision and confirmation

The quality and technical supervision administration authorizes the inspection agency stationed on site to supervise, inspect and test the process of boiler manufacturing.Accept supervision or confirmation of the third party or Customer's representative over the process of boiler manufacturing.

Quality assurance

Quality assurance and control system is established for design, development, manufacturing, packaging and shipping, etc.

Conclusion

To sum up, the following items have to be taken into account when designing a flue-gases cooler:
1. Kind of fluid.
2. Dust content.
3. Maintenance and cleaning works.

4.Vertical/Horizontal
5.Modular (with only one or many fans).
6. Connection of the equipment with the rest of the plant.
7.Depending on the above mentioned factors, different technical solutions may be applied which will go through the adoption of an arrangement.
