SA210A1 Boiler Economizer for Waste Incinerator ASME Standard

MOQ: 10 Tons
Standard Packaging: steel frame
Delivery Period: 50-150 days
Payment Method: L/C,T/T
Supply Capacity: 9000 tons per year
Detail Information
Product Description
Detail Information
Place of Origin
China
Certification
ASME, ISO, EN
Product Name:
Boiler Economizer
Application:
Waster Incinerator
Material Of Base Tube:
SA210A1
Tube Dimension:
OD50.8mm*5.17mm MWT
Production Technique:
Tube Bending
Fabrication Standard:
ASME
Highlight:

ASME standard boiler economizer

,

waste incinerator economizer

,

SA210A1 boiler economizer

Product Description
Boiler Economizer SA210A1 with Handcuffs and Tube Shields for Waste Incinerator
Product Specifications
Attribute Value
Product Name Boiler Economizer
Application Waste Incinerator
Material of Base Tube SA210A1
Tube Dimension OD50.8mm*5.17mm MWT
Production Technique Tube Bending
Fabrication Standard ASME
Product Overview

The Boiler Economizer SA210A1 with handcuffs and tube shields is designed for waste incinerator applications. This heat recovery device is installed at the lower part of the boiler tail flue to efficiently recover waste heat from exhaust gases.

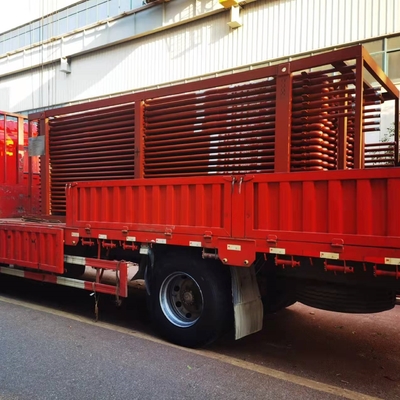

SA210A1 Boiler Economizer for Waste Incinerator ASME Standard 0
Technical Parameters
Description Specification
Material SA210A1 and SA36
Material standard ASME
Dimension Customization
Weight Min: 10 ton Max: 1000 ton
Manufacturing Process
  1. Material preparation
  2. Tube Bending and Bevelling
  3. Butt Welding
  4. Shield Manufacturing
  5. Assembly 1
  6. RT (Radiographic Testing)
  7. Handcuffs and Shields Welding
  8. Assembly 2
  9. Hydro Test
  10. Cleaning and Painting
  11. Packing into Frames
Working Principle

The boiler economizer operates in three distinct heating stages: feed water preheating, evaporation, and superheating. As the first stage in this process, the economizer preheats feed water, making it the lowest temperature heating surface in the boiler steam and water circuit. The working fluid passing through this equipment is monophasic water (non-boiling economizer).

Key Benefits
  • Recovers waste heat from exhaust gases
  • Reduces flue gas exhaust temperature
  • Improves energy efficiency
  • Suitable for industrial applications
  • Customizable dimensions and specifications
  • ASME standard fabrication
