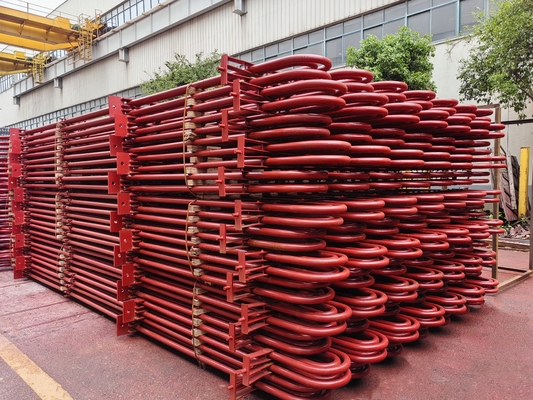

Stainless Steel Boiler Economizer for Power Plants
Product Details
| Application: | Power Plant Boiler, Heat Exchanger | Material: | Stainless Steel,Carbon Steell,Steel Tube |
|---|---|---|---|
| Fuels: | Coal Fired, Oil Fired, Gas Fired | Structure: | Horizontal |
| Type: | Boiler Economizer | Coler: | Red/blue/silver |
| Port: | Shanghai；Zhang Jiagang | ||
| Highlight |
Corrosion Prevention Boiler Economizer,Improved Efficiency Boiler Economizer,Energy Saving Boiler Economizer |
||
Product Description
The boiler economizer is an essential energy-saving device that recovers heat from flue gases to preheat boiler feed water, significantly improving thermal efficiency while reducing fuel consumption and environmental emissions.
The economizer functions as a heat exchanger where flue gases flow downward across tube bundles, transferring heat to the tube walls. Feed water flows upward through the tubes, absorbing heat in a countercurrent arrangement that maximizes heat transfer efficiency while minimizing metal consumption and corrosion risks.
- Fuel Efficiency: Reduces flue gas temperatures by recovering waste heat, significantly lowering fuel requirements
- Extended Equipment Life: Preheats feed water to reduce thermal stress on steam drums
- Cost Reduction: Replaces high-temperature components with more economical low-temperature heat exchangers
- Environmental Compliance: Lowers emissions by reducing exhaust gas temperatures
By Material:
- Steel Tube Economizers: Preferred for most applications due to high strength, impact resistance, and excellent heat transfer properties
- Iron Economizers: Less common in modern installations
By Heating Method:
- Boiling Type: Allows partial vaporization (10-15%) of feed water, ideal for medium-pressure boilers
- Non-Boiling Type: Maintains water temperature below saturation point, preferred for superhigh pressure boilers
| Description | Boiler economizer |
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight | Min: 10 ton Max.:1000 ton |
| Smelting Process | EF+LF + VD |
| Process | Material→Ingot→Hot/Cold-Rolling→Heat treatment→Inspection→Rough machining→UT→2nd Heat treatment→Finishing machining→Inspection |
| UT standard | ASTM A388 or EN10228, etc |
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection for all welding seams
- Hydraulic test report to verify working pressure and safety standards
Product Highlights
Energy Saving Boiler Economizer For Improved Efficiency And Corrosion Prevention Product Overview The boiler economizer is an essential energy-saving device that recovers heat from flue gases to preheat boiler feed water, significantly improving thermal efficiency while reducing fuel consumption and ...
High Pressure Power Boiler Heating Surface Membrane Wall Argon Arc Welding For Biomass Boiler
High Pressure Power Boiler Heating Surface Membrane Wall Argon Arc Welding For Biomass Boiler Product Introduction Water wall panels with pins usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.It is the main type of evaporating heating surface of all kinds of modern boilers and the basic component of boiler water circulation loop.Because of both cooling
High Frequency Welding H Fin Tube Economizer For Power Plant Boiler ASME
High Frequency Welding H Fin Tube Economizer For Power Plant Boiler ASME Product Description The boiler economizer is a device used to recover waste heat in industrial boilers, usually located at the tail of the flue of the boiler, which increases the feed water temperature and reduces fuel consumption by absorbing the heat of the flue gas, so as to achieve the effect of energy saving and emission reduction. But at the same time, as an environmental protection equipment, the
Carbon Steel SA192 Superheater Coil Argon Arc Welding 100% PT
Product Description: A boiler superheater is an essential component in a boiler system, responsible for increasing the temperature of steam produced by the boiler. One of the key products in this category is the Superheater Coil, designed to enhance the efficiency and performance of boiler systems. This particular superheater is suitable for various fuels, including coal, oil, and biomass, making it versatile and adaptable to different energy sources. The Superheater Coil
Boiler Industrial SA210A1 Steel Boiler Economizer Heat Exchange Part ASME Certification
Boiler Industrial SA210A1 Steel Boiler Economizer Heat Exchange Part ASME Certification Introduction The H-shaped finned tube is also known as the H-shaped fin tube, also known as the butterfly fin tube. It is to weld symmetrically two pieces of steel with an arc in the middle to form fins (ribs or butterflies), the frontal shape of which resembles the letter "H", so it is called the H-shaped finned tube. The two fins of the H-shaped fin tube are rectangular and approximately
