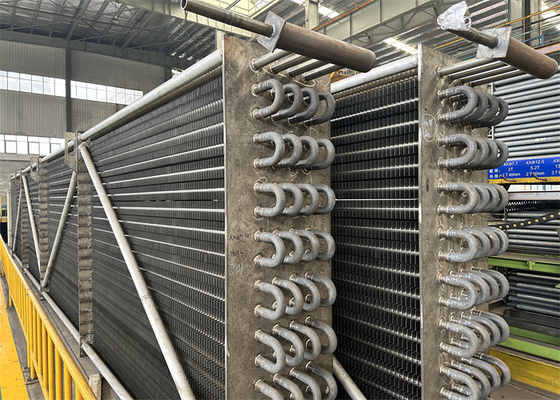

Carbon Steel Boiler Economizer Biomass Steam H Fin Tube

Carbon Steel Boiler Economizer Biomass Steam H Fin Tube

Carbon Steel Boiler Economizer Biomass Steam H Fin Tube
Carbon Steel Boiler Economizer Biomass Steam H Fin Tube
Carbon Steel Boiler Economizer Biomass Steam H Fin Tube
Product Details:
Place of Origin: China,Zhangjiagang
Brand Name: HD BOILER
Certification: ISO9001 , SGS , TUV , ASME , EN
Model Number: Economizer For Boiler
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Sets 10tons
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 45 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500 Tons per month
Contact Now
Detailed Product Description
Name: Economizer Usage: Boiler Economizer
Material: Carbon Steel Seamless Tube Type: Natural Circulation
Structure: Hot / Water Tube Output: Hot Water/Steam
Fuel: Coal/Gas
High Light:

Biomass Steam Carbon Steel Boiler Economizer

,

H Fin Tube Steel Boiler Economizer

,

SA 210C Steel Boiler Economizer

Biomass Steam Boiler Carbon Steel Boiler Economizer H Fin Tube



Quick Details Specifications



As a kind of environmental protection equipment, economizer is the essence of a heat exchanger, both through two existed in the equipment for heat transfer temperature difference of the medium, to the secondary utilization of equipment, due to the burning boiler industry more for gas, use of the heat exchanger is commonly gas gas heat exchanger, air heat exchanger, water is usually installed in the tail gas boiler flue gas recycling waste heat of smoke directly.



Flue gas economizer has many advantages, the effect on the flue gas heat, transfer to the low temperature medium, so as to reduce the exhaust temperature, reduce the loss of hot smoke, some manufacturers reuse high temperature waste heat flue gas and air heat exchanger, recovery of air we can be used as an air preheater, used to reduce the consumption of coal fuel.



Competitive Advantage



1.Fuel saving: After the high temperature fuel gas released by fuel combustion transfers to the boiler water wall tubing, superheater, and reheater, the temperature is extremely high, the economizer makes it ideal for preventing heat loss. The economizer located at the flue of the boiler reduces the flue gas temperature, and maximizes the heat recovery to lower customer fuel costs.



2.Improvement of boiler steam drum working conditions: When entering the steam drum, the temperature of the feed water is increased after it has been heated using the economizer. The thermal stress caused by the temperature difference between the steam drum wall and the feed water is reduced, thus reducing the shrink and swell of the steam drum, and extends the service life.



3.Cost reduction of coal fired boilers: Water is being heated in the boiler economizer made using low temperature material. This makes the economizer a less costly replacement for high temperature boiler water wall tubing, and reduces overall boiler manufacturing costs.




Economizers must be sized for the volume of flue gas, its temperature, the maximum pressure drop allowed through the stack, what kind of fuel is used in the boiler, and how much energy needs to be recovered. Economizers designed for natural gas only, would likely plug-up if installed on a coal boiler and would face increased risk of corrosion if installed on an oil-fired boiler. Some units are designed to keep the flue gases above condensation temperature, and others are made of materials that resist the corrosive effect of condensed flue gases.

Highly Accuarcy Industrial Coal Fired Boiler Stack Economizer For Power Plant







Parameters



Description Boiler economizer
Material Alloy steel, Carbon steel, SA210C ,SA213T22, etc.
Material standard ASTM, EN or ISO etc.
Dimension Customization
Weight

Min: 10 ton

Max.:1000 ton

Smelting Process: EF+LF + VD
Process Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
UT standard ASTM A388 or EN10228, etc


*Note:HD BOILER can bespoke special type of economizer according to customer's requirement.



Internal heat exchangers



1.Subcooling may also be produced by superheating the gas leaving the evaporator and heading to the gas compressor.

2.These systems withdraw heat from the liquid line but heat up the gas compressors suction.

3.This is a very common solution to insure that gas reaches the compressor and liquid reaches the valve.

4.It also allows maximum heat exchanger use as minimizes the portion of the heat exchangers used to change the temperature of the fluid,and maximizeds the volume in which the refrigerant changes its phase.



Carbon Steel Boiler Economizer Biomass Steam H Fin Tube 1
