H Fin Tube Painted Boiler Economizer Solid Fuel Energy Saving Spare Parts
Product Details
| Condition: | New | HS Code: | 3215960855 |
|---|---|---|---|
| Type: | Energy Saving | Surface Treatment: | Painted |
| Pressure: | Low / High Pressure | Size: | Customized |
| Highlight |
Solid Fuel Boiler Economizer,H Fin Tube Painted Boiler Economizer,Energy Saving Boiler Economizer |
||
Product Description
Solid Fuel Boiler Energy Saving Spare Parts H Fin Tube Boiler Economizer
Specifications of Boiler Economizer
Application of Boiler Economizer
During boiler operation in typical commercial and industrial applications, approximately 10-20% of the heating value of fuel is expelled with the stack gases to the atmosphere. Stack economizers are designed to recover significant amounts of this stack gas energy loss, thereby vastly improving boiler system efficiency. There are several considerations when selecting an economizer:
• Gas-side Pressure Drop. Added back-pressure on the boiler stack affects the combustion air fan throughput capability. The economizer and combustion air fan(s) must be sized properly in order to assure a suitable system operation and capacity.
• Feedwater Temperature. The feedwater to the economizer must be deaerated and the temperature setpoint minimally at 220oF to prevent tube corrosion.
• Water-side Pressure Drop. Feedwater pumps must be sized to accommodate the economizer pressure drop. Additionally, a continuous modulating feedwater system is required to ensure proper flow rates through the economizer.
Product Description of Boiler Economizer
Economizer coils are used in downstream of Boiler bank to preheat the feed water absorbing heat from hot exhaust gases. Economizers are always water tube type. Economizers have different types of Tubes depending upon the application. Bare tubes in Economizers are widely used in Industrial boilers and for applications like Heat recovery boilers in Sulfuric acid plants, gilled tubes are employed. Finned tubes are popular in HRSG applications. Feed water can be heated up to a level about 20 - 30 C below saturation temperature of the boiler.

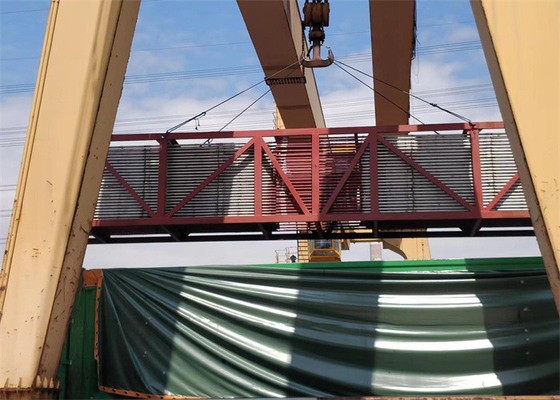

Economizer Workshop
Certificate
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
Product Highlights
Solid Fuel Boiler Energy Saving Spare Parts H Fin Tube Boiler Economizer Specifications of Boiler Economizer Product Name Solid Fuel Boiler Energy Saving Spare Parts H Fin Tube Boiler Economizer Applied Area Sugarcane Mill , Power station and etc.. Structure Type Tube Coil Serpentine Coil Tube ...
High Pressure Power Boiler Heating Surface Membrane Wall Argon Arc Welding For Biomass Boiler
High Pressure Power Boiler Heating Surface Membrane Wall Argon Arc Welding For Biomass Boiler Product Introduction Water wall panels with pins usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.It is the main type of evaporating heating surface of all kinds of modern boilers and the basic component of boiler water circulation loop.Because of both cooling
High Frequency Welding H Fin Tube Economizer For Power Plant Boiler ASME
High Frequency Welding H Fin Tube Economizer For Power Plant Boiler ASME Product Description The boiler economizer is a device used to recover waste heat in industrial boilers, usually located at the tail of the flue of the boiler, which increases the feed water temperature and reduces fuel consumption by absorbing the heat of the flue gas, so as to achieve the effect of energy saving and emission reduction. But at the same time, as an environmental protection equipment, the
Carbon Steel SA192 Superheater Coil Argon Arc Welding 100% PT
Product Description: A boiler superheater is an essential component in a boiler system, responsible for increasing the temperature of steam produced by the boiler. One of the key products in this category is the Superheater Coil, designed to enhance the efficiency and performance of boiler systems. This particular superheater is suitable for various fuels, including coal, oil, and biomass, making it versatile and adaptable to different energy sources. The Superheater Coil
Boiler Industrial SA210A1 Steel Boiler Economizer Heat Exchange Part ASME Certification
Boiler Industrial SA210A1 Steel Boiler Economizer Heat Exchange Part ASME Certification Introduction The H-shaped finned tube is also known as the H-shaped fin tube, also known as the butterfly fin tube. It is to weld symmetrically two pieces of steel with an arc in the middle to form fins (ribs or butterflies), the frontal shape of which resembles the letter "H", so it is called the H-shaped finned tube. The two fins of the H-shaped fin tube are rectangular and approximately
