| Place of Origin: | China |
| Brand Name: | HDB |
| Certification: | ISO9001 , SGS , TUV , ASME , EN |
| Model Number: | Superheater and Reheater |
| Minimum Order Quantity: | 5 tons |
|---|---|
| Packaging Details: | Iron Frame Package |
| Delivery Time: | 30~50 days |
| Product Name: | Heating Pipe | Material: | Carbon Steel |
|---|---|---|---|
| Application: | Cement Industry And Others | Color: | Customer's Requirement |
| Packing: | Iron Frame Package | Standard: | GB, EN, ASME |
| High Light: | carbon steel steam boiler superheater,cement industry steam boiler superheater,EN steam boiler superheater |
||

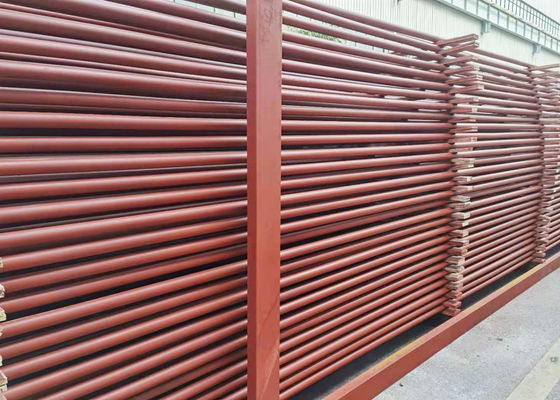

Carbon Steel Boiler Serpentine Pipe Heating Pipe for Cement Industry
Superheater&Reheater, Custom Component For Boiler
A superheater is a component that heats saturated steam in an industrial boiler, turning it into superheated steam. Our superheater guarantees that the superheated steam temperature will fluctuate to within an allowable range (normally varies from 540°C to 500°C)when the boiler is over loaded.
Functions:
1. Superheater is a kind of equipment which can heat saturated steam to superheated steam with a certain temperature.
2. After the saturated steam is heated to superheated steam, the work capacity of steam in the steam turbine is improved, that is, the useful enthalpy of steam in the steam turbine is increased, thus improving the cycle efficiency of the heat engine.
3. In addition, the use of hot steam can also reduce the steam turbine exhaust humidity, avoid turbine blade corrosion, and create favorable conditions for further reducing the steam turbine exhaust pressure and safe operation.
What are the differences of Superheater And Reheater?
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Details
| Setting Information | |
| process | welding and pipe bending |
| structure | horizontal or vertical |
| material | carbon steel, alloy steel |
| tubes | φ32, 38, 42, etc. |
| size | customized |
| brand | HDB |
| Warranty | 18 months |
