Power Station Energy Saving Boiler Superheater Coils

Power Station Energy Saving Boiler Superheater Coils

  • Power Station Energy Saving Boiler Superheater Coils
  • Power Station Energy Saving Boiler Superheater Coils
  • Power Station Energy Saving Boiler Superheater Coils
  • Power Station Energy Saving Boiler Superheater Coils
Power Station Energy Saving Boiler Superheater Coils
Product Details:
Place of Origin: Zhangjiagang China
Brand Name: HD Boiler
Certification: ISO9001 , ASME, TUV,EN
Model Number: Anti Wear Superheater
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Iron Frame ASME Standard Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500 Tons / Month
Contact Now
Detailed Product Description
Fuel: Coal Type: Primary And Secondary
Range Of Applications: Energy Saving Specification: High Corrosion
Inspection: ASME Inspection Certification: ISO, ASME
High Light:

boiler superheater coils


energy saving superheater coils


Power Station Boiler Superheater




Energy Saving Boiler Superheater Coils For Power Station TP321 High Corrosion


Superheater&Reheater, Custom Component For Boiler

Superheater is a part of a boiler that heats the steam from the saturation temperature to the overheating temperature. It is also called a steam superheater.Superheater can be divided into convective type, radial type and semi-radial type according to heat transfer mode;According to the characteristics of the structure, it can be divided into serpentine pipe type, screen type, wall type and wall type.They are made up of parallel pipes and inlet and outlet manifold.


Most industrial boilers do not have superheaters because many industrial processes and living facilities require only saturated steam.In power stations, locomotives and Marine boilers, superheater is usually installed to improve the circulating thermal efficiency of the whole steam power plant.
Product Function&Features

HDB thermal efficient steam super heater for coal fired boilers
Super heaters are the one of the most important boiler sapre parts that improves the thermal efficiency. High temperature steam boiler radiant super heater is usually applied in high pressure power plant boiler.

In the boiler, the role of super heater is to heat the saturated steam to a certain temperature of superheated steam to increase power plant efficiency. Repeater essentially further improves the thermal power plant cycle efficiency.
Steam Super heater Coils: Super heater coils are used in a boiler to generate saturated steam. The super heater coils are specially used in Boilers of Power plant. We manufacture Super heater coils in various grades of Alloy steel and in stain less steel tubes with or without support & Header as per customer's drawing.
Changes in boiler operating conditions, such as load level, fuel change, combustion condition change, etc., all have an impact on superheater outlet steam temperature, so in power station boilers there are means to adjust boiler outlet steam temperature to make it stable at the specified value.Commonly used means are:
(1) with water jet or surface type temperature reducer directly adjust the steam temperature;
(2) with the swing burner to change the temperature of the furnace outlet smoke;
(3) with smoke recirculation adjustment superheater heat absorption.When the boiler load increases, the temperature rise value of the inlet and outlet steam of the flow superheater increases, while the temperature rise value of the radiant superheater decreases.
If the convective superheater, radiant superheater and semi-radiant superheater are properly combined and configured, the outlet steam temperature can change less when the load and combustion conditions change.The heat absorption and steam flow rate of the parallel pipes in the superheater stack will be different in operation.In order to avoid excessive temperature in individual pipes, the superheater is divided into several pipe groups in large boilers. Steam of each pipe group is mixed with a collecting box outside the furnace and the steam guide pipe is used to make each pipe group transposition, so as to avoid excessive temperature difference between each pipe.



1Material compositionCarbon steel, alloy steel or heat-resistant steel, collection boxes and other supporting material. Tubes are customized types of specifications.
2Design patternVertical or horizontal layout.
3AdvantagesBeautiful appearance, size, accuracy, first-class bending and welding technology, first-class detection equipment.

Design structure
1. heating saturated steam, temperature up to 900 degree C.
2. high efficiency, >90%.
3. high speed heating.
4. design with stainless steel.
5. long design service life, 15 years.

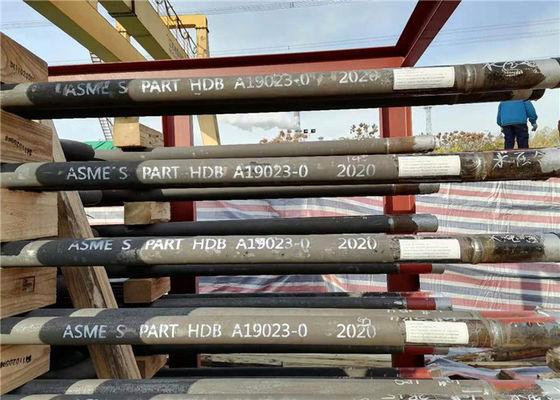

Power Station Energy Saving Boiler Superheater Coils 0
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
HD Boiler offers a best in class facility

1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 150 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization
