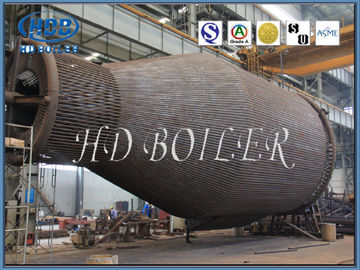

Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers

Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers

  • Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers
  • Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers
  • Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers
  • Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers
Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers
Product Details:
Place of Origin: China
Brand Name: HD BOILER
Certification: ISO9001 , SGS , TUV , ASME , EN
Model Number: Cyclone Separator
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Iron Frame Package
Delivery Time: 40 - 100 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per Month
Contact Now
Detailed Product Description
Name: Cyclone Type Dust Collector Efficiency: 99.5% ~ 99.9%
Material: Carbon Steel, Alloy Steel, Equivalent Circulation Type: Natural Circulation
High Light:

dust collector cyclone separator

,

dust collector separator



  Conical Cyclone Separator for Industrial Boilers and CFB Coal-fired Boilers





Product Description



Cyclone separator is a kind of equipment used for separating gas-solid system or liquid-solid system. The working principle is that the solid particles or droplets with large inertia centrifugal force are separated from the outer wall by the rotating motion caused by the tangential introduction of air flow. The main characteristics of cyclone separator are simple structure, high operating flexibility, high efficiency, convenient management and maintenance, low cost. It is used for collecting dust with diameter of 5-10 μm. It is widely used in pharmaceutical industry. It is especially suitable for dust particles which are thicker and contain more dust. Under high temperature and high pressure conditions, it is also often used as an internal separation device in fluidized bed reactor or as a pre-separator. It is a widely used separation equipment in industry.





Main Features

1 Complete with computer design, design accurate and reliable.
2 The shell adopts frame structure with high strength, good stability,also can designed by different pressure and temperature requirements.
3 The ways of gas in or out can be arranged according to characteristics of the design process into various forms, process layout flexibility.
4 Using the resistance type air flow plus uniform diversion device, the air uniform, and no blocking phenomenon.
5 Precipitation using 480C plate board, discharge tube prick using the new RS line, most with the management, discharge uniformity, discharge performance.
6 The discharge electrode connected with the framework of the rational, no dropped calls, disconnected situation.
7 Lateral torsion arm hammer rapping, rapping uniform and effective force transmission, cleaning easy.







Principle and Working

Cyclone dust separator is a dry gas-solid separator which separates dust from airflow by centrifugal force produced by gas-solid mixture in high-speed rotation. Because the centrifugal force acting on the particles is far greater than the gravity and inertia force, the separation efficiency is higher.

Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers 0



The separation principle and structure of the commonly used tangential inlet cyclone separator are shown in the figure. The main structure is a conical cylinder with a gas inlet pipe in the tangential direction of the upper section of the cylinder, a exhaust pipe inserted into a certain depth in the cylinder on the top of the cylinder, and a powder outlet receiving fine powder at the bottom of the conical cylinder. When the dust-laden airflow enters the cyclone separator at the speed of 12-30m/s from the intake pipe, the airflow will change from linear motion to circular motion. Most of the rotating airflow flows downward from the cylinder to the cone along the wall. In addition, under the action of centrifugal force, the particles are thrown to the wall of the separator. Once the dust particles contact the wall, they lose inertia force. The momentum of downward axial velocity near the wall falls along the wall and enters the ash discharge pipe, and falls into the collection bag from the outlet. In the process of downward rotation, the outer swirling flow continuously flows into the central part of the separator, forming a centripetal radial flow, which constitutes the inner swirling flow of upward rotation. The rotation direction of inner and outer swirling flow is the same. Finally, the purified gas passes through the exhaust pipe and is discharged, and a part of the finer dust particles that have not been separated also escape. The other small part of the gas flowing from the intake pipe flows downward along the outer side of the exhaust pipe through the top cover of the cyclone separator. When it reaches the lower end of the exhaust pipe, it converges with the upward internal swirling flow and enters the exhaust pipe. The fine particles dispersed in the upper swirling flow in this part are also takes away, and then trapped by a bag filter or a wet dust collector.





The purified natural gas enters the cyclone separation zone through the inlet of the equipment.When the impurity gas enters the cyclone separation pipe along the axis, the airflow is strongly rotated by the guide vane, and the airflow enters the cyclone cylinder spirally downward along the cylinder. The high density droplets and dust particles are thrown toward the wall of the cyclone under the action of centrifugal force. Under the action of gravity, they fall down along the wall of the cylinder and flow out of the cyclone pipe dust outlet to the liquid storage area at the bottom of the equipment, and finally flow out from the liquid outlet of the equipment bottom. The rotating airflow in the cylinder shrinks and flows to the center, forming a secondary eddy current upward, which flows through the air duct to the gas purification chamber, and then flows out through the top outlet of the equipment.

Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers 1





Operation



Cyclone separators operate by incorporating centrifugal, gravitational, and inertial forces to remove fine particles suspended in air or gas. These types of separators use cyclonic action to separate particulates from a gas stream. Typically, PM enters the cyclone separator at an angle (perpendicular to the flow stream, tangentially, or from the side), and is then spun rapidly. A centrifugal force is created by the circular airflow that throws the particulate towards the wall of the cyclone. Once the PM hits the wall, it falls into a hopper below. “Clean” exhaust is then either blown through or recirculated to be filtered again.





Technical Data







Model Air volume(m3/h) Total height mm)
Inlet velocity(m/s)
15 >18 20 22
CLT/A-2.5 580 690 770 850 1100
CLT/A-3.0 830 1000 1100 1220 1380
CLT/A-3.5 1140 1360 1510 1670 1600
CLT/A-4.0 1480 1780 1960 2170 1800
CLT/A-4.5 1870 2250 2480 2700 2050
CLT/A-5.0 2320 2780 3080 3400 2300
CLT/A-5.5 2800 3360 3720 4100 2500
CLT/A-6.0 3340 4000 4440 4900 2700
CLT/A-6.5 3920 4700 5210 5700 2900
CLT/A-7.0 4540 5440 6030 6670 3200
CLT/A-7.5 5210 6250 6920 7650 3400
CLT/A-8.0 5940 7130 7900 8730 3600
CLT/A-9.0 7510 9000 9980 11000 4100
CLT/A-10.0 9280 11100 12300 13600 4600
CLT/A-10.6 10400 12400 13800 15200 4800
CLT/A-11 11200 13400 14800 16400 5000
CLT/A-12 13300 15900 17600 19500 5400
CLT/A-13 15600 18700 20700 23370 5900
CLT/A-14 18100 21700 24000 26600 6400
CLT/A-15 20800 24800 27600 30500 6900
CLT/A-16 23700 28400 31500 34800 7360
CLT/A-17 26800 32100 35600 39300 7860
CLT/A-18 30000 36000 39900 44100 8300
CLT/A-19 33500 40200 44500 49200 8790
CLT/A-20 37100 44500 49300 54500 9200



Customized Industrial Cyclone Separator For Industrial Boilers And CFB Boilers 2



Advantages



1. Low capital cost.

2. Ability to operate at high temperatures.

3. Can handle liquid mists or dry materials.

4. Low maintenance requirements (no moving parts).

5. Small footprint - requires relatively small space.



Quality Control



1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization
