Stainless Steel Boiler Superheater Coal Fired High Efficient Heat Exchanger

Stainless Steel Boiler Superheater Coal Fired High Efficient Heat Exchanger

MOQ: 1 Set
Price: Negociable
Standard Packaging: Seaworthy Packaging
Delivery Period: 30 days after deposit
Payment Method: L/C, T/T
Supply Capacity: 500 Tons per Month
Detail Information
Place of Origin
Jiangsu , China
Brand Name
HDB
Certification
ISO9001,ASME,Grade A,SGS,EN
Model Number
Superheater and Reheater
Structure:
Electric Elements
Pressure:
Low/High Pressure
Fuel:
Coal/Gas/Coal-fired/Water Heat
Condition:
New
Materials:
Carbon Steel / Stainless Steel
Color:
Red / Blue / Grey
Highlight:

convection superheater

,

reheater in power plant

Product Description





Stainless Steel Superheater And Reheater , Coal Fired High Efficient Heat Exchanger



Product Description





Superheater
Fossil fuel power plants often have a superheater section in the steam generating furnace.The steam passes through drying equipment inside the steam drum on to the superheater, a set of tubes in the furnace. Here the steam picks up more energy from hot flue gases outside the tubing, and its temperature is now superheated above the saturation temperature. Superheaters are the one of the most important accessories of boiler that improves the thermal efficiency.

Reheater
Power plant furnaces may have a reheater section containing tubes heated by hot flue gases outside the tubes. Exhaust steam from the high-pressure turbine is passed through these heated tubes to collect more energy before driving the intermediate and then low-pressure turbines.



In the boiler, the role of superheater is to heat the saturated steam to a certain temperature of superheated steam to increase power plant efficiency. Repeater essentially further improves the thermal power plant cycle efficiency.

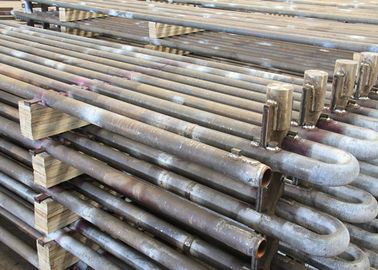

Stainless Steel Boiler Superheater Coal Fired High Efficient Heat Exchanger 0



Superheater is to increase the temperature of the steam above its saturation point.
Reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.

Stainless Steel Boiler Superheater Coal Fired High Efficient Heat Exchanger 1


Details


All the raw materials will be firstly made pipeline cutting.

It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.

Setting Information
process
welding
structure
horizontal or vertical
material
carbon steel, alloy steel
tubes
φ32, 38, 42, etc.
size
customized
brand
HTEG
Warranty
18 months




Differences


Type Advantages Disadvantages Supporting method
Pendant-type 1.Firm structural support 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. supported from above
Inverted-type 1.Proper drainage of the condensed steam 1. Lack the structural rigidity, especially in high speed gas flow Supported from below
Horizontal -type

1. Proper drainage

2. Good structural rigidity.

1. They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.


Application


Use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation


Workshop


Stainless Steel Boiler Superheater Coal Fired High Efficient Heat Exchanger 2

Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.


Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
