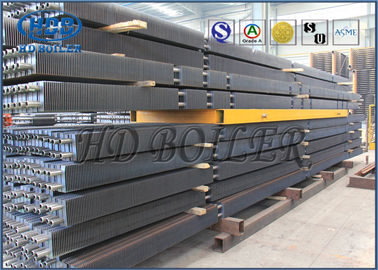

High Heat Transfer Efficiency H Fin Tube Economiser In Boiler With ASME Standard
Product Details
| Fuel: | Coal | Type: | Energy Saving |
|---|---|---|---|
| Range Of Applications: | Utility Boilers | Specification: | Modified According To Customer |
| Surface Treatment: | Painted | Certification: | ISO, ASME |
| Highlight |
power plant economizer,economizer for boiler |
||
Product Description
High heat transfer efficiency H fin tube widely used in utility and industrial boilers with ASME standard
Product Function
The finned tube is a heat exchanger.Is to improve the heat exchange efficiency, usually in the heat exchange pipe surface by adding fins, increase the heat exchange pipe surface area (or internal surface area), so as to improve the heat exchange efficiency, such a heat exchange pipe.
1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.
2.Fins are used to increase the effective surface area of heat exchanger tubing.
3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
Details
| 1 | Material composition | Carbon steel, alloy steel or heat-resistant steel, collection boxes and other supporting material. Tubes are customized types of specifications. |
| 2 | Design pattern | Vertical or horizontal layout. |
| 3 | Advantages | Beautiful appearance, size, accuracy, first-class bending and welding technology, first-class detection equipment. |
Design structure
1. heating saturated steam, temperature up to 900 degree C.
2. high efficiency, >90%.
3. high speed heating.
4. design with stainless steel.
5. long design service life, 15 years.
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
HD Boiler offers a best in class facility,including
-
Established in 1985, Zhangjiagang Hua Dong Boiler Co.,Ltd.(trding as HD Boiler), produces power plant; industrial waste heat incineration and biomass boiler, Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design, fabrication, installation, maintenance and replacement of boiler pressure parts.
-
HD Boiler is conveniently located in the Zhangjiagang Modern Equipment Industrial Park, 150km by expressway from Central Shanghai, and 60km to Suzhou, or Wuxi, HD Boiler is also linked to the marine terminals of Shanghai providing quick and cost effective access to the International market.
