| MOQ: | 1 Set / Sets 10tons |
| Price: | Negotiable |
| Standard Packaging: | Seaworthy Packing |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 500 Tons per month |

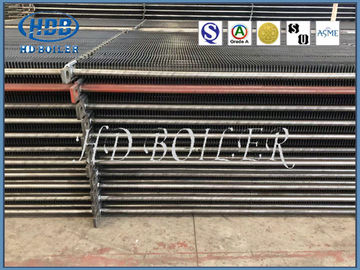

Heat Exchagen Spare Boiler Part Double H Fin Tube Carbon Steel Economizer For Boiler , Power Plant Economizer
Description
Petroleum Economizer Natural Gas Industry can be made of alloy steel, carbon steel or other kind of material as per the customer’s requirements. It conforms to the standard of ASTM, EN, DIN, GB.
The manufacturing equipment is 30~185MN hydraulic press, the forging ratio >3, the technical condition is in accordance with the standard of ASTM, EN, DIN, GB.
Hot-rolled steel plate produce
Hot-rolled plate, hot-rolled steel plate. Complete raw materials after the formation of smelting steel ingot, through the press forming process of ingot steel rolling heating.
Width is larger than 600mm(≥600mm), thickness is 0.35-200mm.
Applications
The main Petroleum Economizer Natural Gas Industry is Widely used for power plant, power station, etc.
Functions
1.Absorb heat of high temperature gas,reduce exhaust gas temperature,reduce exhaust gas consumption and save fuel.
2.Reduce feed water heat absorbing in steam drum as it is heated in economizer before enter into drum,so expensive evaporation heating surface can be instead of econimizer,cost saving.
3.Increase feed water temperature,temperature deviate is decreased of steam drum,heat stress decrease conrrespondingly,extend drum working life time.
Manufacture
Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
With straight channel to gain the best ash-blowing effect.The compact structure to reduce the weight and reduce the manufacturing cost.
Hot rolled seamless steel tubes and cold rolled seamless steel tubes for steam boiler systems
Implementation of the same standard, medium and low pressure boiler tube standards can be used. Hot rolled or cold-rolled (drawn) seamless steel tubes with high quality carbon structural steel.
The 2 main 10, 20 steel manufacturing, in addition to ensure the chemical composition and mechanical properties of things do pressure test, curling, flaring and flattening test.
Hot rolling in hot rolling, cold rolling (DIAL) in heat treatment delivery.
Specification
| Description | Heat boiler economizer, steam boiler economizer, oil boiler economizer, coal steam boiler economizer, Gas boiler economizer,etc |
| Material | Alloy steel, Carbon steel, SA210C ,SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight |
Min: 10 ton Max.:1000 ton |
| Smelting Process: | EF+LF + VD |
| Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
| UT standard | ASTM A388 or EN10228, etc |
Features
Because the spiral finned province coal equipment has high heat intensity per unit length, compact structure, material saving, wear and corrosion resistance, prevent ash performance is good, safe operation cycle is long, maintenance costs, high running economy etc.So both boiler economizer replace the generation of a structure, promoting technical progress, a new type of heating equipment, energy saving and emission reduction is worth popularizing vigorously .
