| MOQ: | 1 Set / Sets 10tons |
| Price: | Negotiable |
| Standard Packaging: | Seaworthy Packing |
| Delivery Period: | 30 days |
| Payment Method: | Western Union, L/C, T/T |
| Supply Capacity: | 500 Tons per month |
Utility / Power Station Plant Economiser In Boiler Parts ISO9001 Certification
Product Description

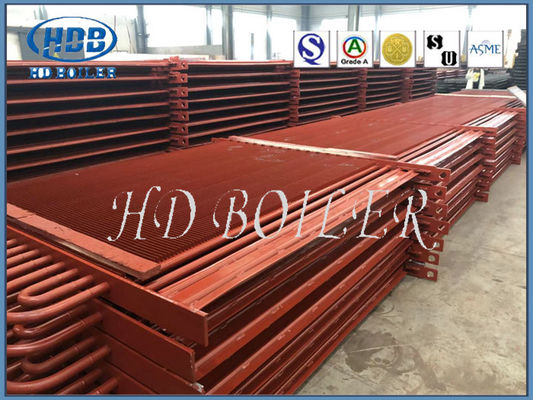

Economizer Economizer is installed on the lower part of the boiler tail flue for recycling the waste heat of smoke, a device heating boiler feed water into steam drum pressure of saturated water heating surface, due to its high temperature flue gas heat, reduces the exhaust temperature of flue gas, save the energy, improve the efficiency, so called the Economizer.
The steel-pipe coal saver is not restricted by pressure and can be used as a boiling type, which is generally controlled by carbon steel with an outer diameter of 32 ~ 51 mm.Sometimes the fin and fin are added to the tube to improve heat transfer.The steel-pipe coal saver consists of parallel curved pipe (called serpentine pipe) arranged horizontally.
The coal saver is mainly used for industry, and it is gradually applied to agriculture and some related industries.
Specifications
| Description | Boiler economizer |
| Material | Stainless steel |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight |
Min: 10 ton Max.:1000 ton |
| Smelting Process: | EF+LF + VD |
| Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
| UT standard | ASTM A388 or EN10228, etc |
Types
There are many ways to classify coal economizers, which can be classified as follows:
1. It can be divided into non-boiling type and boiling type according to the degree to which water is heated.
2. According to the manufacturing materials, there are two types: cast iron and steel pipe coal saver.Non-boiling coal saver is mostly made of cast iron, but it is also made of steel tube, while boiling coal saver is only made of steel tube.Cast iron economizers are mostly used in boilers with pressure of less than 2.5MPa.If the pressure exceeds 2.5MPa, the economizer made of steel pipe shall be used.
economizer
economizer
3. The device can be divided into vertical type and horizontal type.
4. The relative flow direction of smoke exhaust and water supply can be divided into three types: downstream, counter-current and mixed.
5. Divided by structure: light pipe coal saver and finned coal saver.Finned economizers include: h-type economizers (more used) and spiral fin economizers.
6. According to the form of heat conduction: direct conduction and indirect conduction;
The direct conduction is to preheat the boiler water by the direct radiation of the exhaust gas.Indirect conduction is the indirect preheating of boiler water through heat conducting medium.After the 1990s, indirect conduction technology developed rapidly in China and made great breakthroughs in technology, mainly including patent of heat conducting oil technology and patent of superconducting heat energy saving technology.In particular, the technology of space superconducting thermal materials from the beginning of the 21st century is in the forefront of the field of boiler energy conservation in the world.
Certification
