| MOQ: | 1 Set |
| Price: | Negociable |
| Standard Packaging: | Seaworthy packing |
| Delivery Period: | 30 days after deposit |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 Tons per Month |

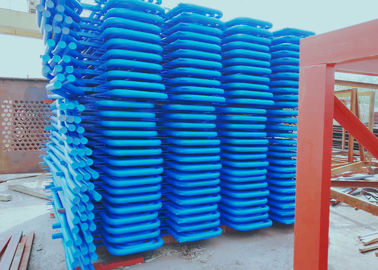

High Pressure Customized Water Heat Superheater Tube Coil In Thermal Power Plant
Product Description
In power station boilers, the effect of superheaters is to heat the steam to certain temperature for higher efficiency of the power station. Reheaters are steam superheaters to reheat the over-worked long-pressure or middle-pressure steam to certain temperature.
The use of rehearters can further improve heat power of the power station circulating and control the steam temperature of the end blades of the steam turbine within allowed range. Zigzag superheaters and reheaters of the Company are also unique with rigorous production technique, first-class production flow line and complete test methods.
Details
All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.
With the artistic apperance and accurate size,the advance process for bending tube and welding,the first rate test equipment and sophisticated technology
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Application
Feed water and steam generator tubing.
Brine heaters, sea water scrubbers in tanker inert gas systems.
Sulfuric acid and hydrofluoric acid alkylation plants.
Pickling bat heating coils.
Heat exchangers in a variety of industries.
Transfer piping from oil refinery crude columns.
Plant for the refining of uranium and isotope separation in the production of nuclear fuel.
Pumps and valves used in the manufacture of perchlorethylene, chlorinated plastics.
Monoethanolamine (MEA) reboiling tube.
Cladding for the upper areas of oil refinery crude columns.
Propeller and pump shafts.
Workshop
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
|
|
