| Place of Origin: | Jiangsu , China |
| Brand Name: | HDB |
| Certification: | ISO9001,ASME,Grade A,SGS,EN |
| Model Number: | Superheater and Reheater |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negociable |
| Delivery Time: | 30 days after deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Tons per Month |
| Structure: | Electric Elements | Pressure: | Low/High Pressure |
|---|---|---|---|
| Fuel: | Coal/Gas/Coal-fired/Water Heat | Condition: | New |
| Materials: | Carbon Steel / Stainless Steel | Color: | Red / Blue / Grey |
| High Light: | convection superheater,superheater in boiler |
||

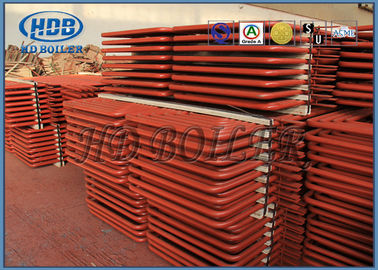

Carbon Steel Superheater And Reheater , for Power Station Used Energy Saving Heat Exchanger
Product Description
Advanced equipment from America
1.welding surface defect inspection
2. Inner side inspection, including surface crack, peeling, pull, scratches, pits and bumps, spots and corrosion defects
Product Description
In power station boilers, the effect of superheaters is to heat the steam to certain temperature for higher efficiency of the power station. Reheaters are steam superheaters to reheat the over-worked long-pressure or middle-pressure steam to certain temperature.
The use of rehearters can further improve heat power of the power station circulating and control the steam temperature of the end blades of the steam turbine within allowed range. Zigzag superheaters and reheaters of the Company are also unique with rigorous production technique, first-class production flow line and complete test methods.
Details
All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.
With the artistic apperance and accurate size,the advance process for bending tube and welding,the first rate test equipment and sophisticated technology
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Application
use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Workshop
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
