Painted Red Boiler Fin Tube High Efficiency ASME Standard Third Party Inspection

Painted Red Boiler Fin Tube High Efficiency ASME Standard Third Party Inspection

MOQ: 1 Set / Sets 10tons
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 60 days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 Tons per month
Detail Information
Place of Origin
China
Brand Name
HD Boiler
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
H-type
Material:
Carbon Steel / Alloy Steel
Painting:
Red / Blue / Grey /Blue
Standard:
ASME Standard Or GB
Dimension:
Customized
Sales Location:
Middle East
Type:
Natural Circulation
High Light:

spiral fin tube

,

heat exchanger fin tube

Product Description

Boiler finned tube painted red exported middle east area high efficiency ASME standard third party inspection



Introduction



1. Economiser performs a key function in providing high overall boiler thermal efficiency by recovering the low level energy from the flue gas before it is exhausted to the atmosphere.



2. Economiser recovers the energy by heating the boiler feedwater.



3. Economiser are basically tubular heat transfer surfaces used to preheat boiler feed water before it enters the steam drum or furnace surfaces.



4. Economiser reduces operating costs or economise on fuel by recovering extra energy from the flue gas.



5. Boiler economizers are heat exchange devices with finned tubes that heat a liquid, sometimes water, up to however sometimes doesn't exceed the boiling purpose of liquid.



6. We can manufacture three types of boiler economizer, bare tube economzier, H finned tube economzier and spiral finned tube economzier.



Procedure



1 Economisers also reduce the potential of thermal shock and strong water temperature fluctuations as the feed water enters the drum or waterwalls.
2 Increasingly stringent environmental regulations limiting nitrogen oxides and sulfur dioxide emission can also affect economizer design.
3 The gas-side heat transfer coefficient is much less than water side heat transfer coefficient. To compensate this, outer surface of the tubes may be finned to increase the surface area of heat transfer.
4 The ultimate goal of economizer design is to achieve the necessary heat transfer at minimum cost.
5 A key design criterion for economizer is maximum allowable flue gas velocity. Higher velocity provide better heat transfer and reduce capital cost.



Specifications



Name(unit) Specification(mm)
Bare pipe(OD) 25-1650
Bare pipe(Thickness) 2-40
Fin (Thickness) 0.6-3.0
Fin (Height) 5-30
Fin tube thread pitch 5-30
Fin tube length ≤12000

Material:Carbon Steel,Alloy,Austenitic Steel(Nickel and Chromium or Manganese)



Quality Control



1 Impact test and Strength calculation report with applied materials information.
2 100%NDT(non-destructive inspection) report of steel plate, tube and electrode.
3 X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler.
4 Hydraulic test report: ensure the standard working pressure and safety.

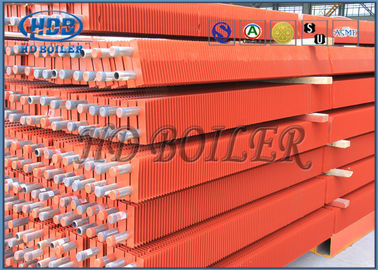

Painted Red Boiler Fin Tube High Efficiency ASME Standard Third Party Inspection 0



Painted Red Boiler Fin Tube High Efficiency ASME Standard Third Party Inspection 1
