Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard

Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard

    • Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard
    • Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard
    • Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard
    • Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard
  • Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard

    Product Details:

    Place of Origin: China
    Brand Name: HD BOILER
    Certification: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Economizer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set / Sets 10tons
    Price: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 60 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Tons per month
    Contact Now
    Detailed Product Description
    Material: ND Steel Painting: Red Painted
    Destination: Thailand ( Export ) Output: Steam / Hot Water
    Purchase Quantity: 235.46 Tons Type: Natural Circulation

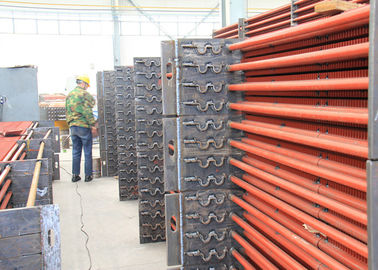

    Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard



    Introduction


    1. Economiser performs a key function in providing high overall boiler thermal efficiency by recovering the low level energy from the flue gas before it is exhausted to the atmosphere.



    2. Economiser recovers the energy by heating the boiler feedwater.



    3. Economiser are basically tubular heat transfer surfaces used to preheat boiler feed water before it enters the steam drum or furnace surfaces.



    4. Economiser reduces operating costs or economise on fuel by recovering extra energy from the flue gas.



    5. Boiler economizers are heat exchange devices with finned tubes that heat a liquid, sometimes water, up to however sometimes doesn't exceed the boiling purpose of liquid.



    6. We can manufacture three types of boiler economizer, bare tube economzier, H finned tube economzier and spiral finned tube economzier.



    Procedure


    1. Economisers also reduce the potential of thermal shock and strong water temperature fluctuations as the feed water enters the drum or waterwalls.



    2. Increasingly stringent environmental regulations limiting nitrogen oxides and sulfur dioxide emission can also affect economizer design.



    3. The gas-side heat transfer coefficient is much less than water side heat transfer coefficient. To compensate this, outer surface of the tubes may be finned to increase the surface area of heat transfer.



    4. The ultimate goal of economizer design is to achieve the necessary heat transfer at minimum cost.



    5. A key design criterion for economizer is maximum allowable flue gas velocity. Higher velocity provide better heat transfer and reduce capital cost.



    Specifications

    Name(unit) Specification(mm)
    Bare pipe(OD) 25-1650
    Bare pipe(Thickness) 2-40
    Fin (Thickness) 0.6-3.0
    Fin (Height) 5-30
    Fin tube thread pitch 5-30
    Fin tube length ≤12000

    Material:Carbon Steel,Alloy,Austenitic Steel(Nickel and Chromium or Manganese)



    Quality Control


    1. Impact test and Strength calculation report with applied materials information.

    2. 100%NDT(non-destructive inspection) report of steel plate, tube and electrode.

    3. X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler.

    4. Hydraulic test report: ensure the standard working pressure and safety.



    Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard



    Packing


    Red Painted ND Or Carbon Steel Boiler Economizer HRSG Boiler ASME Standard
