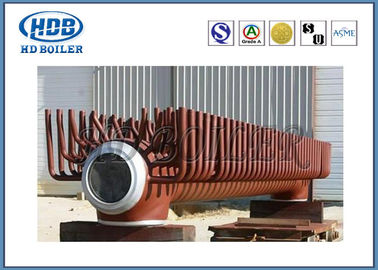

Industrial Steam Boiler Manifold Headers With Longitudinal Welded Pipe ASME Standard
Product Details
| Condition: | New | Structure: | Fire/Water Tube |
|---|---|---|---|
| Fuel: | Coal/Gas/Coal-fired/Water Heat | Pressure: | Low/High Pressure |
| Specification: | Customized | Output: | Hot Water/Steam |
| Manufacturing Level: | A | Port: | Shanghai |
| Trademark: | HDB | HS Code: | 3215960855 |
| Highlight |
fully combustion Steam Manifold Headers,Longitudinal Welded Steam Manifold Headers,Longitudinal Welded Industrial Manifold Headers |
||
Product Description
ASME standard industrial manifold boiler header for industry bolier Good Quality Boiler Pressure Parts
Specification:
SZS series steam boiler header has many advantages such as fully combustion, non-pollution in the emission, convenient and safe operation and easy installation as well as high thermal efficiency, large output, strong load adaptability, high degree of automation and so on. It is an ideal environment-friendly product with high efficiency, low consumption and small pollution. SZS series gas and oil fired boiler is a fast-assembly water-tube boiler with double boiler barrels and "D" type layout. It is composed of an upper and lower boiler barrels, membrane water wall, convection bank, economizer, and condenser. After the fuel is fired in the furnace, the flue gas is discharged into the chimney through convection bank and flue gas waste heat recovery device.
Application:
The steam boiler pressure part header with large diameter longitudinal welded pipe have water wall header, superheater header, economizer header and so on, it acts as collection, mixture, re-distributing working medium, as the structure, it can be classified as the end cover type( end enclosure) and necking down type.
Technical parameters of customer design boiler pressure parts header for CFB boiler
| Diameter(OD) | ￠76mm~￠914mm |
| Length(Max) | 23000mm |
| Temperature(℃) | 300~1500 |
Workshop
Certifications
HD Boiler offers a best in class facility,including
- Fabrication area of 200,000 square meters
- 150 Engineers
- 600 Coded welders
- 60 Licensed Inspectors (including NDT level-lll instructors)
- Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
- ISO 90001:2008 Quality System
- ASME Certificate of Utility Boiler
- ASME‘S’ , ‘U’ and NB stamp authorization
