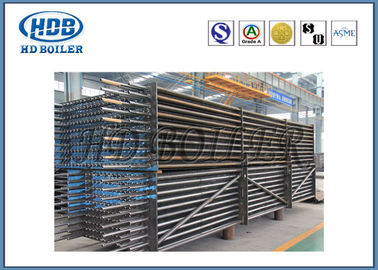

Hot Water / Steam Boiler Stack Economizer For CFB Boiler / Power Station
Product Details
| Condition: | New | Structure: | Fire / Water Tube |
|---|---|---|---|
| Fuel: | Coal / Gas / Oil-fired Water Heat | Model Number: | Customization |
| Type: | Natural Circulation / Once Through | Pressure: | High / Low Pressure |
| Place Of Origin: | Jiangsu , China | Output: | Hot Water / Steam |
| Usage: | Industry / Power Station | Surface Treatment: | Painted |
| HS Code: | 3215960855 | ||
| Highlight |
power plant economizer,economizer for boiler |
||
Product Description
Specification:
Economizer is a heat exchanger device that captures the "lost or waste heat" from the boiler's hot stack gas. The latest technology boiler spiral finned tubes economizer typically transfers this waste heat to the boiler's feed-water or return water circuit, but it can also be used to heat domestic water or other process fluids.
Our enconomizer is squeezing by high frequency welding method and the technology of steel strip according to certain structure automatically, continuous spiral welding outside the light tube wall, and then the other reserved part light tube bending, combination according to the requirement. As a result, the diameter and length under the same conditions, it has larger heat transfer area.
Introduction:
In boilers, Economical low installation costs better performance boiler economizer for CFB boiler are heat exchange devices that heat fluids, usually water, up to but not normally beyond theboiling point of that fluid. Economical boiler economizers are so named because boiler economizers for water heating can make use of the enthalpy in fluid streams that are hot, but not hot enough to be used in a boiler, thereby recovering more useful enthalpy and improving the boiler's efficiency. Better performance boiler economizers are a device fitted to a boiler which saves energy by using the exhaust gases from the boiler to preheat the cold water used to fill it (thefeed water).
Parameter:
| Name | Economical low installation costs better performance boiler economizer for CFB boiler |
| specifications of finned tube | unit(mm) |
| Bare pipe(od) | 25-165 |
| bare pipe(thick) | 2-8 |
| finned thicks | 0.6-3.0 |
| finned height | 5-30 |
| finned tube thread pitch | 5-30 |
| finned tube length | </=12000 |
| Remark | 1.Other specifications outside the table should be proposed, it is negotiable. 2.Generally speaking, the height of the fin <=1/2d 3 The spiral finned tubes produced by our company are manufactured according to the principle:JB/T6512-92 DG1020-97 |
Accessory:
The boiler economizer acts as a waste heat recovery device, ensuring that this heat does not go unused.
Instead, the heat is used to essentially preheat the water, so that less heat is required to bring the water to a temperature high enough to make steam
boiler parts Heat exchanger H Fin tube economizer used in utility boilers, industrial boilers, marine power, such as the tail of heat exchanger components.
Performance characteristics :
1. Excellent anti-wear performance
2. Less fouling
3. Compact space
4. Welded Joints less
5. Stability
Other products:
Our main products including CFB boiler, coal fired boiler and boiler parts such as tubular air pre-heater, rotary air pre-heater, super heater, re-heater, header, membrane water wall and economizer.
Certificate:
Company Introduction:
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
