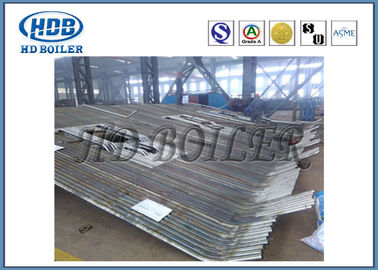

Steam Boiler Water Wall Panels , Membrane Water Wall Tubes In Boiler Well Painted

Steam Boiler Water Wall Panels , Membrane Water Wall Tubes In Boiler Well Painted

MOQ: 1 set 10tons
Price: Negotiable
Standard Packaging: Iron frame package
Delivery Period: 30-100 days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500tons per momth
Detail Information
Place of Origin
ZhangJiagang , Jiangsu , China
Brand Name
HD BOILER
Certification
ISO9001 , ASME , Grade A , SGS , EN , TUV
Model Number
Boiler Parts
Condition:
New
Structure:
Fire / Water Tube
Fuel:
Coal / Gas / Oil-fired Water Heat
Model Number:
Customization
Type:
Natural Circulation / Once Through
Pressure:
High / Low Pressure
Place Of Origin:
Jiangsu, China
Output:
Hot Water / Steam
Usage:
Industry / Power Station
Dimension:
Customization
Weight:
10-1000 Ton
Highlight:

boiler water wall panels

,

membrane water wall

Product Description

The top of equipment Manufacturing industry in China Boiler Pressure Parts Membrane Water Wall for Steam Boiler



Product Description


Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.



Advantages of Membrane Water Wall


1). To guarantee the leakproofness of furnace wall and reduce the air leak of combustion chamber.

2). To achieve the full water cooling of combustion chamber, and the boiler accessories membrane water wall is benefit to prevent coking under the condition of supplemental firing.

3). The thermal storage capacity is small, the warming of combustion chamber is fast and the cooling is also fast, which could shorten the cooling time of boiler’s start and furnace shut down.

4). It is good to adopt top supported water cooled wall and it could reduce the load of boiler framework, which is benefit to overhang.

5) Compared with the bare tubes, the membrane water wall improves the heat absorption capacity of tubes.

6) The factory direct boiler membrane water wall could improve the Preliminary combination degree of boiler parts and reduce the installation workload.



Steam Boiler Water Wall Panels , Membrane Water Wall Tubes In Boiler Well Painted 0

Parameter

Name

Membrane water panel

Material

Carbon steel,Alloy,Stainless steel

Tube size

Φ38 - 76 mm, or as required

Standard

ISO , ASME

Model

Studded

Application

Istallable around the boiler combustion chamber



Features


1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safet



Certifications


Steam Boiler Water Wall Panels , Membrane Water Wall Tubes In Boiler Well Painted 1

Company Indroduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

Steam Boiler Water Wall Panels , Membrane Water Wall Tubes In Boiler Well Painted 2
