Fuel Fired Circulating Fluidized Bed Boiler , Steam Turbine Power Station Boiler
Product Details
| Condition: | New | Fuel: | Coal / Biomass |
|---|---|---|---|
| Structure: | Fluidized Bed | Water Circulation: | Natural Circulation |
| Pressure: | High Pressure | Specification: | Customized |
| Burning Style: | Fluidized Bed Furnace | Place Style: | Vertical |
| Highlight |
circulating fluidized bed boilers,coal fired boiler |
||
Product Description

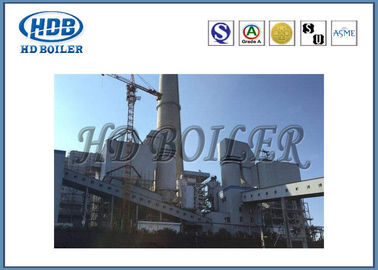

Fuel Fired Circulating Fluidized Bed Boiler , Steam Turbine Power Station Boiler
Product Description
CFB with its superior encironmental characteristics,fuel adaptability and good running adaptability has been widely welcomed.CFB good at load capacity and peaking capacity,fuel preparation system is simple,excellent slag discharged actively,no secondary ash polluction,easy to implement utilization,investment and operation cost is moderate and thus favored by the users.Currently widely used in small-scale,CHP plants,boimass power plants and waste incineration plants.
Features
• Boiler sheet separator cyclone and air-cooled (water cooled)cyclone separator
• Boiler Run efficiency up to 90%
• Tail superheater area using air-cooled(water cooled)wall enclosure
• Rear fender economizer furnace wall:the guard plate frame light furnace wall,boiler tightness
• Design of steel structures:Using finite element analysis software of the boiler structure was accurately calculated to ensure that the load distribution is reasonable
• Optimizing a secondary air ratio can be reduced auxiliary power,strengthening extension to extend the disturbance in the furnace flue gas residence time,improve thermal efficiency of the boiler
• Furnace section play,smoke long residence time in the furnace,the furnace up speed is low,the funace circulating volume,improve the boiler burnout rate,colleagues,greatly reducing the wear of the furnace water wall region
Parameter
| Item | Unit | Specification | ||
| Model | HD-75/3.82-M | HD-75/5.3-M | HD-75/9.8-M1 | |
| Rated evaporation | t/h | 75 | ||
| Max.Continues evaporation | t/h | 85 | ||
| Rated steam pressure | MPa | 3.82 | 5.3 | 9.8 |
| Rated steam temperature | ℃ | 450 | 485 | 540 |
| Feed water temperature | ℃ | 150 | 150 | 215 |
| Fuel type | Anthracite, lean coal, bituminous coal, lignite, petroleum coke, breeze, etc. | |||
| Furnace height | M | 26.2 | ||
| Furnace section | m2 | 21 | ||
| Number of coal feeder | Unit | 2 | ||
| Super heater thermostat mode | Spray desuperheater | |||
| Unburned carbon(bituminous coal) | % | <6 | ||
| Pre-heater air temperature | ℃ | 150 | ||
| Exhaust gas temperature | ℃ | 145.5 | ||
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 400,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
