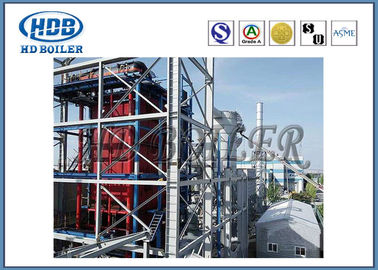

High Thermal Efficiency Steam Hot Water Boiler Corner Tube Fully Enclosed Structure

Name: High Thermal Efficiency Steam Hot Water Boiler Corner Tube Fully Enclosed Structure
Brand: HD BOILER
SKU: DZL
Rating: 4.9 (178 reviews)

MOQ:	1Set
Price:	Negotiable
Standard Packaging:	Seaworthy Packing
Delivery Period:	Negotiation
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	25 Sets / Year

Detail Information

Product Description

Detail Information

Place of Origin

Zhangjiagang,China

Brand Name

HD BOILER

Certification

ISO9001,ASME,Grade A,SGS,EN

Model Number

DZL

Condition:

New

Structure:

Non Steel Frame, Fully Enclosed

Fuel:

Coal - Fired

Size:

Customized

Type:

Natural Circulation

Output:

Hot Water

Usage:

Industrial

Style:

Vertical

Highlight:

industrial steam boiler

coal fired hot water boiler

Product Description

High Thermal Efficiency Steam Hot Water Boiler Corner Tube Fully Enclosed Structure

Introduction

Corner tube boiler is a high-tech product,with and exclusive design introduced from the Danish Warren Company by HD Boiler.In China it has been chosen as the industry standard.The boiler drum is external,with a unique chamber and safe cycle,which is quick to start.The entire boiler is supported by the cycle tubes and the membrane wall,which has great stability from the"angle tube".

Features

• Thermal efficiency of the boiler is very high,due to the reasonable structure of the grate design.Accurate casting,with minimal assembly of the scale extrusion grate,leads to minimized coal leakage and no need for shutdowns when having to replace the grate.

• The water cycle furnace uses aunique structure,the drum is kept cool,by the heated water flowing in one direction ,when there is a power outage,so that the water system does not vaporize and water circulation is safe and reliable.

• The corner tube boiler water structure is earthquake resistant,due to its non steel-frame.The body weight is supported by the membrane wall and the down comer.The membrane walls are welded into one,creating a shock resistant structure.

• The fully enclosed structure:membrane water-wall boiler by welding together four weeks.

Specifications(Hot-water Boiler)

Model(DHL)	14-AP	29-AIII	29-AIII	29-AIII	29-AIII	29-AIII	46-AIII
Heat	14	29	29	29	29	29	46
Work Pressure (Mpa)	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Out/feed Water Tem.	130/70	130/70	130/70	130/70	130/70	130/70	130/70
Grate (m2)	32	32	32	32	37	37	60
Design Efficiency(%)	82	82	82	80	82	80	82
Air perheater	Yes	Yes	Yes	Yes	No	Yes	No
Size (L×W×H)	12×8×13	14×9×13	15×9×13	14×10.5×13	12.2×9×13	14×10.5×13	12.2×13.2×15
Airflow	29540	58570	58570	58570	52161	58570	117220
Pressure	3840	3840	3840	3840	2813	3840	2664
Motor power	45	90	90	90	55	90	132
Speed	1450	1450	1450	1450	1450	1450	730
Airflow	50150	97777	97777	97777	97777	97777	211470
Pressure	4008	4008	4008	4008	4008	4008	3545
Motor Power	110	185	185	185	185	185	315
Speed	14550	1450	1450	1450	1450	960	960

Model(DHL)	46-AIII	46-AIII	58-AII	70-AP	91-AP
Heat	46	46	58	70	91
Work Pressure (Mpa)	1.6	1.6	1.6	1.6	1.6
Out/feed Water Tem.	130/70	130/70	130/70	130/70	130/70
Grate (m²)	60	57	78	93	110
Design Efficiency(%)	82	82	83	84	84
Air perheater	No	No	No	No	No
Size (L×W×H)	12.2×13.2×15	13.6×11.6×15.8	17.5×13.5×15.6	14.2×15.2×15.6	15.3×16.2×16.6
Airflow	117220	117220	122560	141170	184450
Pressure	2664	2664	2166	2474	2474
Motor power	132	132	90	132	185
Speed	730	730	960	730	960
Airflow	211470	211470	188730	254670	168800
Pressure	3545	3545	4583	3290	3270
Motor Power	315	315	355	355	200
Speed	960	960	960	960	1450

Fuel:Bagasse, Biomass, Lignite, Coal,Bituminous coal, Scaly Bark, Fuel gas, Industrial waste, khuff gas, MFO(marine fuel oil), Organic matter, Oil, Litter, Rice hulls, Rubberwood, Sludge, Wood, Woodchips.

Company Introduction

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
