| MOQ: | 1 Set |
| Price: | Negotiable |
| Standard Packaging: | Seaworthy Packing |
| Delivery Period: | 25 Days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 50 Sets / Month |
Oil Gas Combine Marine Steam Generator Smoke Tube Small Capacity
Product Description

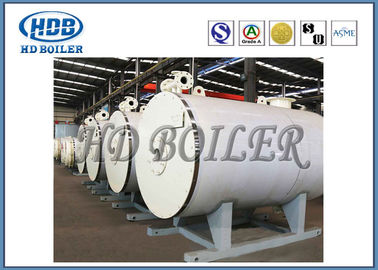

CWNS automatic oil(gas) fired atmospheric pressure hot water boiler adopts vertical/horizontal structure.Fuel is burning under micro-pressure,high temperature smoke in the funace to complete the process of radiation and convection heat after entering the atmosphere.It can be used for heating,living water and heat production to provide endless power.
Technical Parameters
| Model | CWNS |
0.58-85/60 Y.Q |
0.7-85/60 Y.Q |
1.05-85/60 Y.Q |
1.4-85/60 Y.Q |
1.75-85/60 Y.Q |
2.1-85/60 Y.Q |
2.8-85/60 Y.Q |
|
| Item | Unit | ||||||||
| Rated power | MW | 0.58 | 0.7 | 1.05 | 1.4 | 1.75 | 2.1 | 2.8 | |
| Total heat | 104Kcal | 50 | 60 | 90 | 120 | 150 | 180 | 240 | |
| Rated Working Pressure | MPa | Atmospheric Pressure | |||||||
|
Fuel Consumption |
Light Diesel | Kg/h | 54 | 65 | 97.5 | 130 | 162 | 195 | 260 |
| Town gas | Nm3/h | 141.5 | 170 | 255 | 340 | 425 | 510 | 680 | |
| Natural Gas | Nm3/h | 58.5 | 70 | 105 | 140 | 175 | 210 | 280 | |
| LPG | Nm3/h | 25 | 30 | 45 | 60 | 75 | 90 | 120 | |
| Water Inlet dia. | DN | 100 | 100 | 125 | 150 | 150 | 200 | 200 | |
| Return pipe dia. | DN | 100 | 100 | 125 | 150 | 150 | 200 | 200 | |
| Blowdown Valve Dia. | DN | 40 | 50 | 50 | 50 | 50 | 65 | 65 | |
| Voltage | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |
| Overall Dimension | mm |
2800×1550 ×1790 |
3030×1680 ×1820 |
3250×1760 ×2960 |
3580×1830 ×2020 |
4120×1900 ×2120 |
4320×1940 ×2160 |
4800×2000 ×2280 |
|
| Net Weight | Kg | 1460 | 1980 | 2480 | 2980 | 3450 |
3920 |
5150 | |
Quatily Control
• Fabrication area of 200,000 square meters
• 150 Engineers
• 600 Coded welders
• 60 Licensed Inspectors(NDT Level-III instructors)
• Class-A Licenses for Design and Manufacture Boiler
• ISO 9001:2008 Quality System
• ASME Certificate of Power Boilers
• ASME 'S','U' and NB stamp authorization
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
|
|
