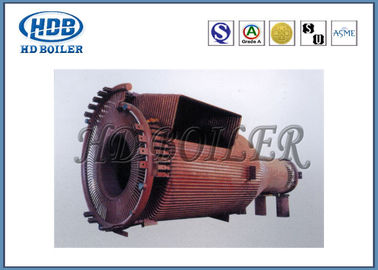

Automatic Large Scale Horizontal Industrial Cyclone Dust Separator High Efficiency

Product Details:

Place of Origin:	China
Brand Name:	HD BOILER
Certification:	ISO9001 , SGS , TUV , ASME , EN
Model Number:	Cyclone separator

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Iron Frame Package
Delivery Time:	40 - 100 Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Automatic
Processing Methods:	Physics	Guarantee:	1 Year
Installation Method:	Vertical	HS Code:	3215960855
Medium:	Air , Gas , Liquid	Port:	Shanghai
High Light:	boiler cyclone separator , dust collector separator

Automatic Large Scale Horizontal Industrial Cyclone Dust Separator High Efficiency

Product Description

Cyclonic separation can eliminate particulates, such as dirt and dust, from a stream of air, gas or liquid. Engineers sometimes call these tornadic dust busters centrifugal separators. That's because at the root of these machines is something called centrifugal force.

Detials

Think back to your high school physics class. Centrifugal force is the tendency of an object following a curved path to fly away from the center of the curvature. Remember the ball and string experiment? Sure you do. You swung a ball on a string over your head. What happened when you released the string? The ball flew off on a path that was tangential to its radius at the point of release. That's centrifugal force, which is not to be confused with centripetal force, the moving of an object toward a center or axis. Automatic Large Scale Horizontal Industrial Cyclone Dust Separator High Efficiency 0

Name	Type
Figure (a)	Tangential inlet,axial discharge.
Figure (b)	Tanential inlet,peripheral discharge.
Figure (c)	Axial inlet,axial discharge.
Figure (d)	Axial inlet,peripheral discharge.

Principle

they are contraptions that uses centrifugal forces along with small amounts of pressure via a turning movement to divide dust particles into categories. The entire process of the cyclone and how the separators function is quite interesting. The selected substance is pushed at elevated levels into the pipe entering the device. The robust form of the filter makes the incoming substance spin into a vortex. Bigger more textured particles are swept towards the outer barriers of the cyclone. Then it is spun in the air as heavy particles are pushed into another section. The thinner particles are released at the top. The process taken by the model uses a constant flow.

Characteristics

Cyclones are commonly considered the best pollution control option for many various manufacturing companies.

1. The simplicity and low cost nature of cyclones make them widely used.

2. They often need minimum maintenance.

3. Cyclones have few pieces which means if there ever is a problem you will only need to replace one or two items.

4. They are known to effectively operate in any climate condition.

5. This feature is extremely helpful for work areas melting materials at elevated temperatures or workshops in locations where humidity is often high.

6. It can be quickly produced and shipped to any manufacturing company seeking pollution control.

7. High efficiency over a broad flow range.
8. Flow-optimized design.
9. High safety during operation under pressure.
10. Long-term corrosion protection.

Quality Control

1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
Automatic Large Scale Horizontal Industrial Cyclone Dust Separator High Efficiency 2

Company Introduction

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

1. Fabrication area of 200,000 square meters
2. 80 Engineers
3. 200 Coded welders
4. 30 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
