| MOQ: | 1 Set |
| Price: | Negotiable |
| Standard Packaging: | Seaworthy packing |
| Delivery Period: | 50 Days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 500 Tons / Month |
Product Description

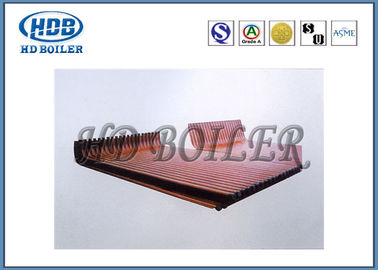

A waterwall in a boiler is an furnace wall that is comprised of refractory and tubes in a water-tube boiler.The tubes are evenly spaced and generally connect to headers which in turn are connected back to the main generating bank of the boiler.They serve a two fold purpose here in that capture heat that would otherwise escape to the atmosphere and help heat the water in the boiler.And they also help keep the refractory cool(relatively speaking)This prevents spalling of the refractory.
Specification
| Name | Membrane water panel |
| Material | Carbon steel,Alloy,Stainless steel |
| Tube size | Φ38 - 76 mm, Customize |
| Standard | ISO , ASME |
| Model | Studded |
| Application | Istallable around the boiler combustion chamber |
Quality Control
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
Company Indroduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
