| Place of Origin: | Zhangjiagang,Jiangsu,China |
| Brand Name: | HD Boiler |
| Certification: | ISO9001/SGS/TUV/ASME/EN |
| Model Number: | Header |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy Packing |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P, MoneyGram |
| Supply Ability: | 100 Tons/Month |
| Condition: | New | Structure: | Fire/Water Tube |
|---|---|---|---|
| Fuel: | Coal/Gas/Coal-fired/Water Heat | Type: | Boiler Part |
| Pressure: | Low/High Pressure | Range Of Applications: | Industrial/Power Station |
| Specification: | Customized | Manufacturing Level: | A |
| Surface Treatment: | Painted | HS Code: | 3215960855 |
| High Light: | Stainless Steel Thermal Oil Boiler Header,longitudinal Thermal Oil Boiler Header,longitudinal Stainless Steel Boiler Header |
||

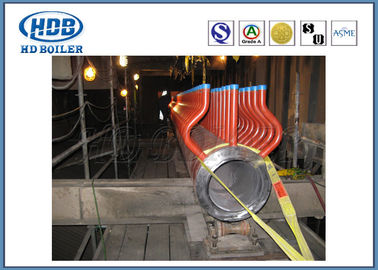

SA210A1 stainless steel thermal oil boiler header for Economical Industrial Boiler Pressure Parts
Product Description
Headers form an important part of all types of boilers. Steam from the generating tubes is collected in headers which are therefore always under pressure. This pressure may vary from 300 psi to 2000 psi. Since headers are always under pressure, the utmost care is taken by us while fabricating them. Depending on the generating capacity of the boiler the header sizes fabricated by us vary from 100 mm to 600 mm NB. The stubs of various sizes are very carefully welded to the main body of the header to provide the desired openings from the header.
Process
The critical point to manufacture the end cover of steam trap boiler economizer header is the welding process. We adopt the advanced manufacture process, the complete large sized device and mature technology, especially the welding of the end cover with the boiler part header, we adopt the auto submerged welding, this welding method exists the high manufacture efficiency, good quality, the artistic welding appearance, safe and reliable operation.
Technical parameters of customer design boiler pressure parts header for CFB boiler
| Diameter(OD) | ￠76mm~￠914mm |
| Length(Max) | 23000mm |
| Temperature(℃) | 300~1500 |
Material
1. Carbon steel:20G,SA-106B,SA-106C,etc.
2. Low-alloy thermal resistant steel:15CrMoG,12Cr1MoVG,SA-335P12,SA335-P22,etc.
3. Middle-alloy thermal resistant steel:SA-335P91,etc.
4. Special material(ultra-supercritical):SA-335P122,SA-335P92,etc.
Certifications
Competitive Advantage
Quality control and management to the whole produce process, including ingot smelting, hot-rolling, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
