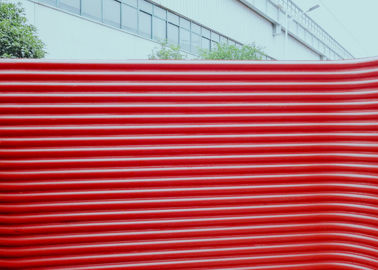

Steam Boiler Water Wall Tubes Made of Carbon Steel in ASME/GB Standard
Product Details
| Name: | Boiler Water Walls | Application: | Industrial / Power Plant |
|---|---|---|---|
| Material: | Stainless Steel / Alloy | Structure: | Fire / Water Tube |
| Packaging: | Iron Frame Packing | Standard: | ASME, GB, EN |
| Highlight |
boiler water wall panels,membrane water wall |
||
Product Description
Power plant Condensing gas boiler Water Wall tubes high temperature TUV certification manufacturer
Product Description
Pressure loss caused by wall tubes (or risers, evaporator tubes) of a natural circulation boiler should be at low level because of the natural circulation principle. Thus, vertically installed riser tubes in natural circulation boilers have a larger diameter than riser tubes in forced circulation boilers. All natural circulation boilers must have an upwards-rising arrangement of wall tubes because of the circulation principle. There are variations on how sharp the rise is: In conservative vertical furnace boilers the wall tubes are placed in a straight vertical direction . In corner tube (Eckrohr) boilers the wall tubes are arranged as slightly rising or horizontal wall-tube banks.

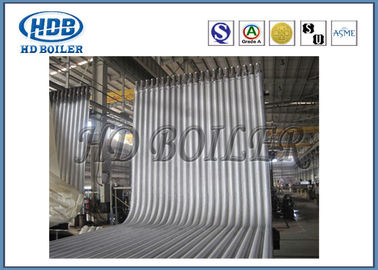

The advantages of membrane type water wall
(1) Guarantee the sealing of the furnace wall,reducing air leakage in combustion chamber .
(2) Water Cooling in combustion chamber, so that in the case of enhanced combustion is helpful to prevent coking.
(3) Heat storage capacity is small, the combustion chamber heats up fast, faster cooling, can shorten the boiler to startup and reduce the furnace cooling time.
(4) Appropriatly using the pipe wall, thereby significantly reducing the boiler frame load, is advantageous for the suspension.
(5) Compared with the light tube, improve the heat absorption capacity of the pipe.
(6) Improve the degree of the boiler parts of combination, conveniently reduce the workload of the installation.
Specification
| Name | Membrane water panel |
| Material | Carbon steel,Alloy,Stainless steel |
| Tube size | Φ38 - 76 mm, Customize |
| Standard | ISO , ASME |
| Model | Studded |
| Application | Istallable around the boiler combustion chamber |
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
Quality Control
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
